Volume pricing
- 1+ pcs$0.47
- 10+ pcs$0.44
- 100+ pcs$0.42
- 500+ pcs$0.39
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Terminal Type
- Circular
- RoHS Durumu
- ROHS3 Compliant
- Length Overall
- 0.860 21.84mm
- Wire Gauge
- 18-22 AWG
- Studtab Size
- 8 Stud
- Uzunluk
- 21.844mm
- Terminal And Terminal Block Type

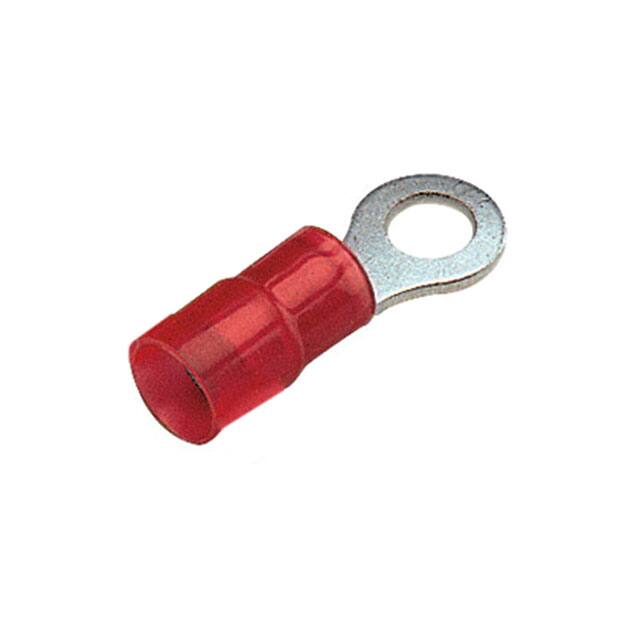

- RING TERMINAL
- Insulation Diameter
- 0.080 ~ 0.145 (2.03mm ~ 3.68mm)
- Wire Gauge Min
- 18 AWG
- Contact Plating
- Tin
- Gender
- Female
- Yayın Yılı
- 2006
- Montaj Tipi
- Free Hanging (In-Line)
- Wire Gauge Max
- 22 AWG
- Insulation
- Insulated
- Ambalaj
- Tape & Reel (TR)
- Genişlik
- 7.874mm
- Radyasyon Dayanımı
- No
- Material Insulation
- Polyamide (PA), Nylon
- Özellikler
- Serrated Termination
- Fabrika Tedarik Süresi
- 4 Weeks
- Wire Cross Section
- 1.5 mm2
- Parça Durumu
- Active
- Weight
- 4.168514kg
- Nem Hassasiyeti (MSL)
- Not Applicable
- Width Outer Edges
- 0.310 7.87mm
- Thickness
- 0.031 0.79mm
- Renk
- Red
- Terminal
- Crimp
- Seri
- Pan-Term®
- Depth
- 7.87mm
- Contact Materials
- Copper
- ECCN Kodu
- EAR99
- Montaj
- Free Hanging
- HTS Kodu
- 8536.90.40.00
