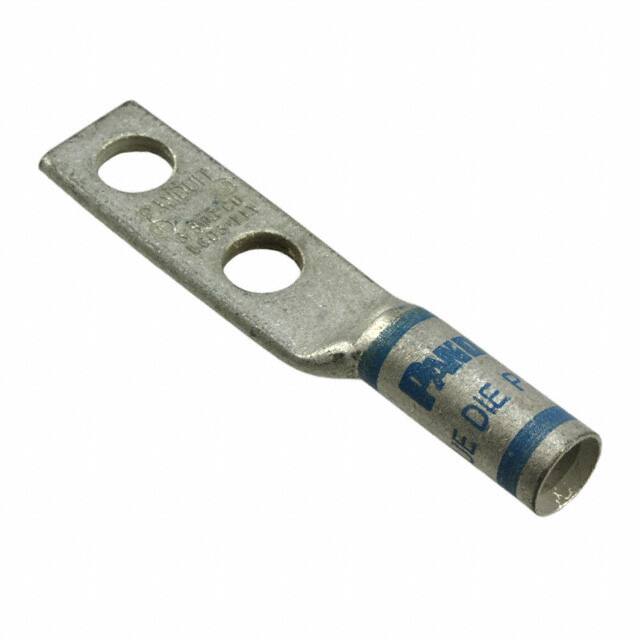

Specifications
- Renk
- Blue
- Gender
- Male
- Montaj
- Free Hanging
- Terminal Type
- Lug, Grounding
- HTS Kodu
- 8535.90.80.20
- Terminal
- Crimp, Barrel
- Seri
- Pan-Lug®
- Nem Hassasiyeti (MSL)
- Not Applicable
- Length Overall
- 2.240 56.90mm
- Diameter Barrel Id
- 0.220 (5.59mm)
- Body Plating
- Tin
- Terminal And Terminal Block Type
- RING TERMINAL
- ECCN Kodu
- EAR99
- Radyasyon Dayanımı
- No
- Ambalaj
- Bulk
- Montaj Tipi
- Free Hanging (In-Line)
- Yayın Yılı
- 2004
- Contact Finish
- Electro-Tin
- Wirecable Gauge
- 6 AWG
- Wire Gauge
- 6 AWG
- Studtab Size
- 1/4 Stud
- RoHS Durumu
- ROHS3 Compliant
- Diameter Ring Id
- 0.270 (6.86mm)
- Contact Materials
- Copper
- Width Outer Edges
- 0.480 12.19mm
- Tab Thickness
- 0.080 2.03mm
- Parça Durumu
- Active
- Weight
- 680.388555g
- Diameter Barrel Od
- 0.310 (7.87mm)
- Fabrika Tedarik Süresi
- 4 Weeks
- Terminal Style
- Two Stud Holes
- Orientation
- Straight
- Uzunluk
- 56.896mm
- Genişlik
- 12.2mm
- Insulation
- Non-Insulated
- Depth
- 12.19mm
