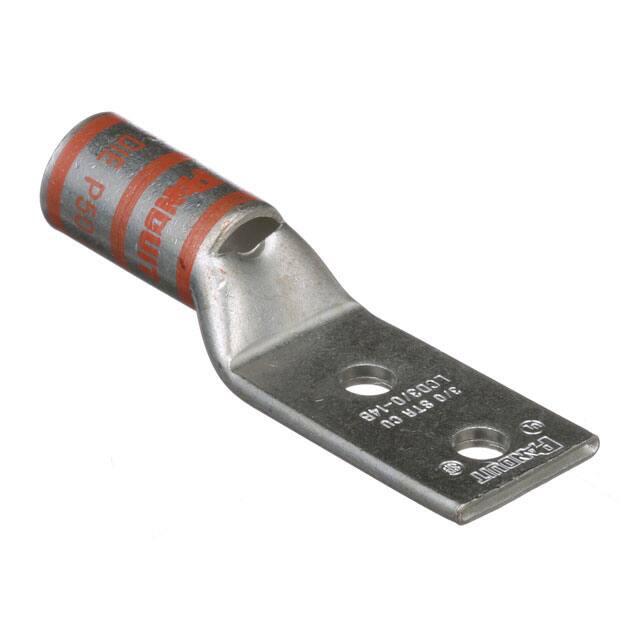

LCD3/0-14B-X

Specifications

Tab Thickness

0.130 3.30mm

HTS Kodu

8536.90.40.00

Terminal Style

Two Stud Holes

Renk

Orange

Body Plating

Tin

Diameter Ring Id

0.270 (6.86mm)

Insulation

Non-Insulated

Length Overall

3.020 76.71mm

Width Outer Edges

0.960 24.38mm

Terminal Type

Lug, Grounding

Parça Durumu

Active

Depth

24.4mm

Montaj Tipi

Free Hanging (In-Line)

Contact Finish

Electro-Tin

Yayın Yılı

2004

Radyasyon Dayanımı

No

RoHS Durumu

ROHS3 Compliant

ECCN Kodu

EAR99

Terminal

Crimp, Barrel

Ambalaj

Bulk

Wire Gauge

3/0 AWG

Studtab Size

1/4 Stud

Diameter Barrel Od

0.640 (16.26mm)

Contact Materials

Copper

Seri

Pan-Lug®

Diameter Barrel Id

0.510 (12.95mm)

Fabrika Tedarik Süresi

4 Weeks

Uzunluk

76.7mm

Nem Hassasiyeti (MSL)

Not Applicable

Terminal And Terminal Block Type

RING TERMINAL
