Specifications
- Terminal
- Crimp, Barrel
- Wire Gauge
- 350MCM (kcmil)
- Renk
- Blue
- RoHS Durumu
- ROHS3 Compliant
- Nem Hassasiyeti (MSL)
- Not Applicable
- Ambalaj
- Bulk
- HTS Kodu
- 8536.90.40.00
- Contact Finish
- Electro-Tin

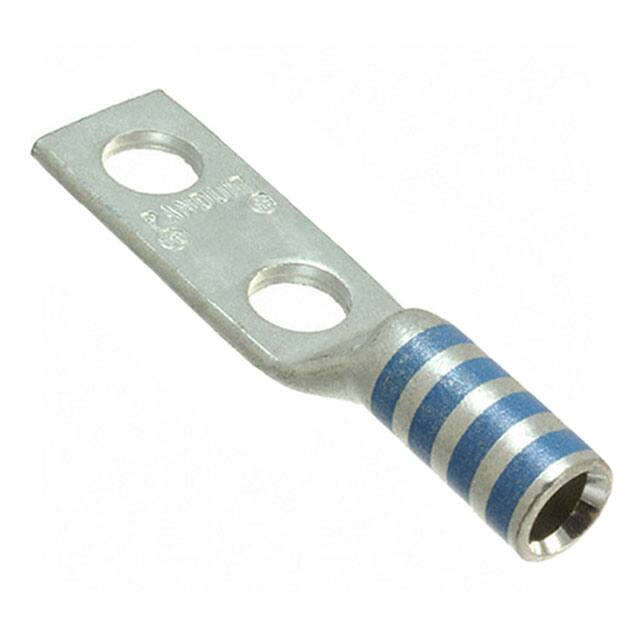

- Terminal And Terminal Block Type
- RING TERMINAL
- Diameter Barrel Id
- 0.840 (21.34mm)
- Contact Materials
- Copper
- Studtab Size
- 1/2 Stud
- Terminal Style
- Two Stud Holes
- Radyasyon Dayanımı
- No
- Body Plating
- Tin
- Kurşunsuz Kodu
- yes
- Width Outer Edges
- 1.530 38.86mm
- Length Overall
- 6.360 161.54mm
- Yayın Yılı
- 2004
- Montaj
- Free Hanging
- Terminal Type
- Rectangular Tongue
- Tab Thickness
- 0.220 5.59mm
- Diameter Ring Id
- 0.530 (13.46mm)
- Depth
- 38.9mm
- Fabrika Tedarik Süresi
- 4 Weeks
- ECCN Kodu
- EAR99
- Safety Approval
- CSA; UL
- Parça Durumu
- Active
- Montaj Tipi
- Free Hanging (In-Line)
- Diameter Barrel Od
- 1.220 (30.99mm)
- Insulation
- Non-Insulated
- Seri
- Pan-Lug®
- Uzunluk
- 161.544mm
