Specifications

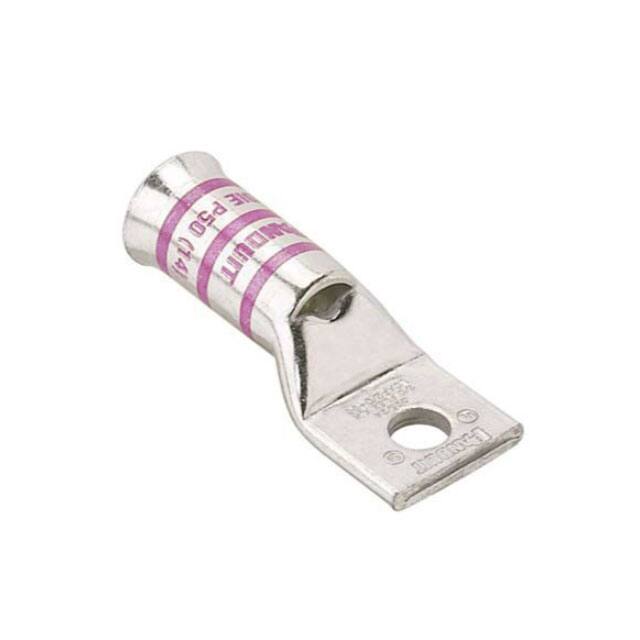

- Terminal
- Crimp, Barrel
- Diameter Barrel Id
- 0.390 (9.91mm)
- Parça Durumu
- Active
- Contact Finish
- Electro-Tin
- Wirecable Gauge
- 1 AWG
- Wire Gauge
- 1 AWG
- ECCN Kodu
- EAR99
- RoHS Durumu
- ROHS3 Compliant
- Fabrika Tedarik Süresi
- 4 Weeks
- Terminal And Terminal Block Type
- RING TERMINAL
- Uzunluk
- 52.832mm
- Yayın Yılı
- 2004
- Nem Hassasiyeti (MSL)
- Not Applicable
- Contact Materials
- Copper
- Width Outer Edges
- 0.800 20.32mm
- Seri
- Pan-Lug®
- Studtab Size
- 3/8 Stud
- Diameter Barrel Od
- 0.590 (14.99mm)
- Terminal Style
- Single Stud Hole
- HTS Kodu
- 8536.90.40.00
- Tab Thickness
- 0.120 3.05mm
- Body Plating
- Tin
- Insulation
- Non-Insulated
- Depth
- 19.3mm
- Renk
- Pink
- Diameter Ring Id
- 0.410 (10.41mm)
- Radyasyon Dayanımı
- No
- Terminal Type
- Rectangular Tongue
- Ambalaj
- Bulk
- Montaj
- Free Hanging
- Montaj Tipi
- Free Hanging (In-Line)
- Length Overall
- 2.080 52.83mm
