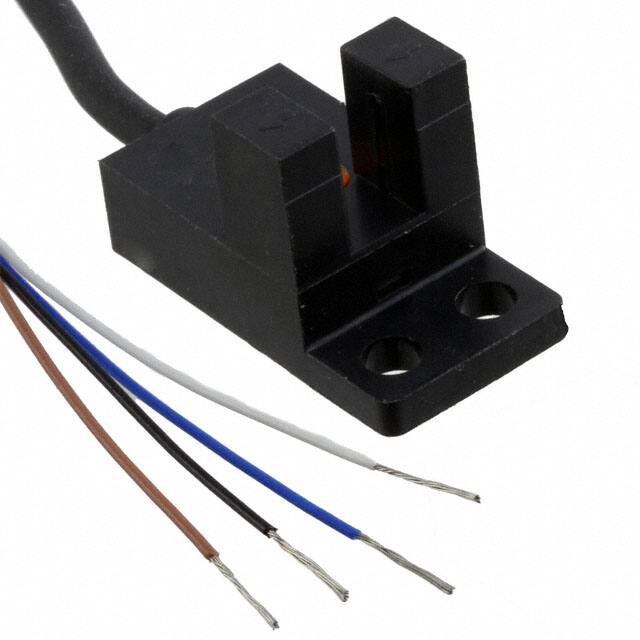

PM-Y44

Specifications

Min. Çalışma Sıcaklığı

-25°C

Output Range

50mA

Repeatability

0.03

Maks. Çalışma Sıcaklığı

55°C

Seri

PM-44

Currentcollector Ic Max

15mA

Tip

Unamplified

Ambalaj

Bulk

Response Time

20μs

Supply Voltagemax Vsup

24V

Terminal

Cable

Measurement Rangemax

5 mm

Sensing Method

Through-Beam

Kılıf / Paket

Module, Wire Leads, Slot Type

REACH Uyumluluk Kodu

unknown

Parça Durumu

Obsolete

Algılama Mesafesi

0.197 (5mm)

Montaj Tipi

Chassis Mount

Additional Feature

REVERSE POLARITY, SHORT CIRCUIT PROTECTION

Body Breadth

13.4 mm

Kurşunsuz

Lead Free

Body Length Or Diameter

13.4mm

Montaj

Chassis Mount

Yayın Yılı

2003

Voltage Collector Emitter Breakdown Max

30V

RoHS Durumu

RoHS Compliant

Output Current

50mA

Touchscreen

Infrared (IR)

Body Height

27.5mm

Supply Voltagemin Vsup

5V

Output Configuration

NPN - Dark-ON/Light-ON - Selectable

Nem Hassasiyeti (MSL)

1 (Unlimited)
