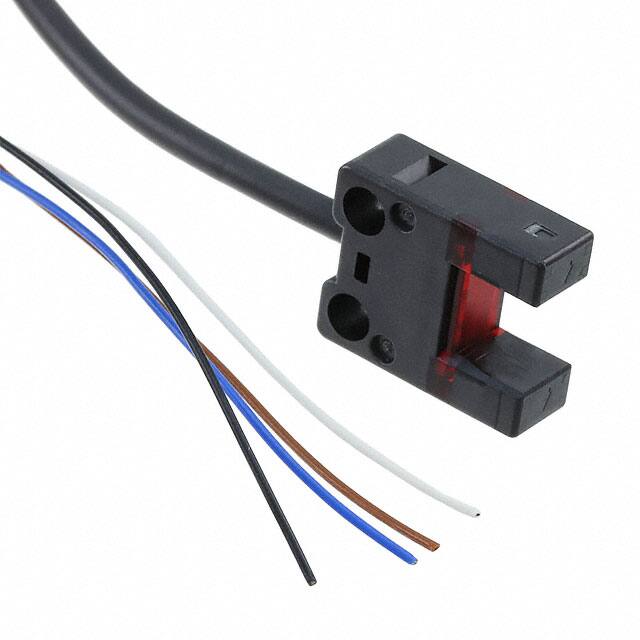

PM-U25-R

Specifications

Seri

PM-25

Besleme Gerilimi

5V~24V

Repeatability

0.01

RoHS Durumu

RoHS Compliant

Fabrika Tedarik Süresi

8 Weeks

Yayın Yılı

2016

Operating Supply Current

15mA

Çalışma Sıcaklığı

-25°C~55°C TA

Housing

PLASTIC

Montaj

Chassis Mount

Additional Feature

IP64, SHORT-CIRCUIT PROTECTION, IT ALSO HAVE UNDER LIGHT RECEIVED CONDITION RESPONSE TIME OF 20 MICRO SECOND

Nem Hassasiyeti (MSL)

1 (Unlimited)

Output Configuration

NPN - Open Collector

Algılama Mesafesi

0.236 (6mm)

Montaj Tipi

Chassis Mount

Termination Type

CABLE

REACH Uyumluluk Kodu

unknown

Parça Durumu

Active

Sensing Method

Through-Beam

Kılıf / Paket

Module, Wire Leads, Slot Type

Response Time

20μs
