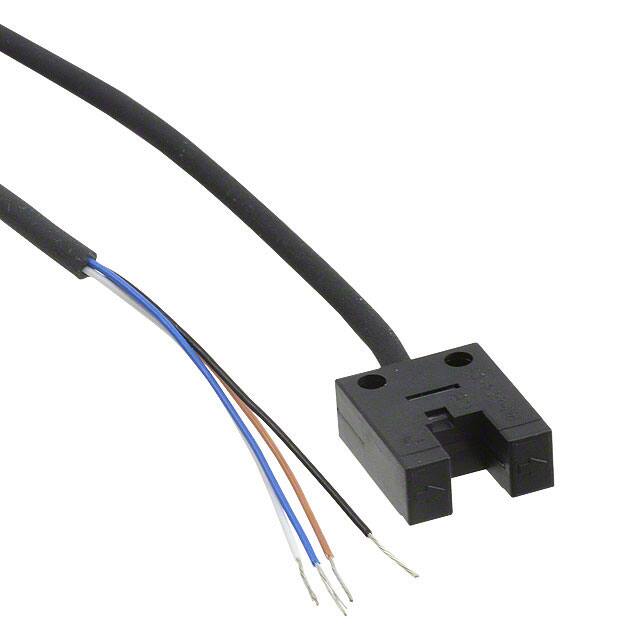

PM-U24-C3

Specifications

Currentcollector Ic Max

15mA

Tip

Unamplified

Seri

PM-24

Repeatability

0.03

Fabrika Tedarik Süresi

6 Weeks

Body Length Or Diameter

13.4mm

Additional Feature

REVERSE POLARITY, SHORT CIRCUIT PROTECTION

Body Breadth

6 mm

Montaj Tipi

Chassis Mount

Algılama Mesafesi

0.197 (5mm)

REACH Uyumluluk Kodu

unknown

Parça Durumu

Obsolete

Sensing Method

Through-Beam

Kılıf / Paket

Module, Wire Leads, Slot Type

Measurement Rangemax

5 mm

Supply Voltagemax Vsup

24V

Response Time

20μs

Ambalaj

Bulk

RoHS Durumu

RoHS Compliant

Voltage Collector Emitter Breakdown Max

30V

Yayın Yılı

2003

Çalışma Sıcaklığı

-25°C~55°C

Montaj

Chassis Mount, Screw

Current Dc Forward If Max

50mA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Output Configuration

NPN - Dark-ON/Light-ON - Selectable

Supply Voltagemin Vsup

5V

Body Height

16mm
