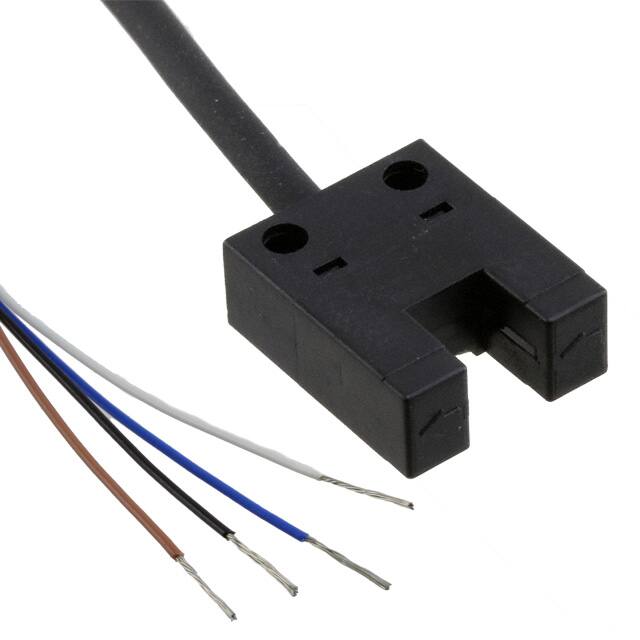

PM-U24

Specifications

Min Supply Voltage Dc

5V

Tip

Unamplified

Seri

PM-24

Repeatability

0.03

Measurement Rangemax

5 mm

Reach Svhc

Unknown

Terminal

Cable

Response Time

20μs

Ambalaj

Bulk

Sensing Method

Through-Beam

Kılıf / Paket

Module, Wire Leads, Slot Type

Montaj Tipi

Chassis Mount

Algılama Mesafesi

0.197 (5mm)

Parça Durumu

Obsolete

Body Length Or Diameter

13.4mm

Additional Feature

REVERSE POLARITY, SHORT CIRCUIT PROTECTION

Body Breadth

6 mm

Operating Supply Current

15mA

Çalışma Sıcaklığı

-25°C~55°C

Yayın Yılı

2003

Montaj

Chassis Mount, Screw

Current Dc Forward If Max

50mA

RoHS Durumu

RoHS Compliant

Voltage Collector Emitter Breakdown Max

30V

Housing Material

PBT

Touchscreen

Infrared (IR)

Output Current

50mA

Body Height

16mm

Output Configuration

NPN - Dark-ON/Light-ON - Selectable

Max Supply Voltage Dc

24V

Nem Hassasiyeti (MSL)

1 (Unlimited)
