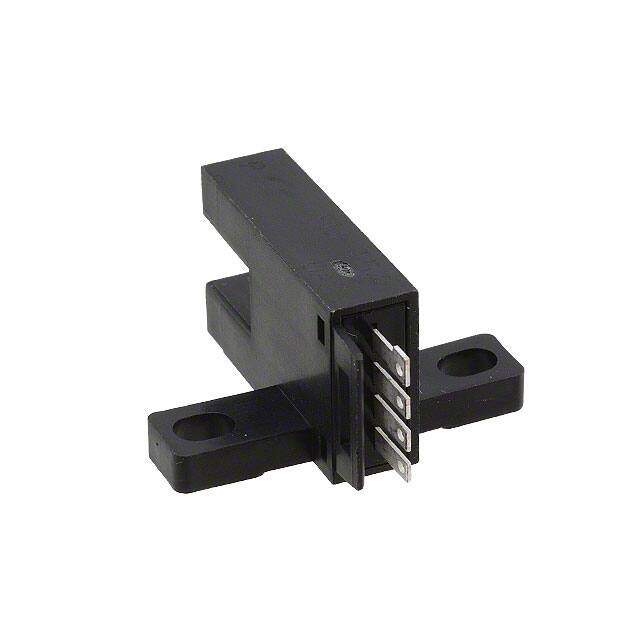

PM-T54

Specifications

Yayın Yılı

2003

Response Time

20μs

Output Configuration

NPN - Dark-ON/Light-ON - Selectable

Body Length Or Diameter

26mm

REACH Uyumluluk Kodu

unknown

RoHS Durumu

RoHS Compliant

Current Dc Forward If Max

50mA

Measurement Rangemax

5 mm

Body Breadth

13.4 mm

Housing Material

Polybutylene

Parça Durumu

Obsolete

Nem Hassasiyeti (MSL)

1 (Unlimited)

Min Supply Voltage Dc

5V

Montaj

Chassis Mount

Body Height

22.2mm

Tip

Unamplified

Terminal

Cable

Ambalaj

Bulk

Max Supply Voltage Dc

24V

Algılama Mesafesi

0.197 (5mm)

Voltage Collector Emitter Breakdown Max

30V

Çalışma Sıcaklığı

-25°C~55°C

Additional Feature

REVERSE POLARITY, SHORT CIRCUIT PROTECTION

Sensing Method

Through-Beam

Seri

PM-54

Montaj Tipi

Chassis Mount

Kılıf / Paket

Module, Wire Leads, Slot Type

Touchscreen

Infrared (IR)

Currentcollector Ic Max

15mA

Repeatability

0.03
