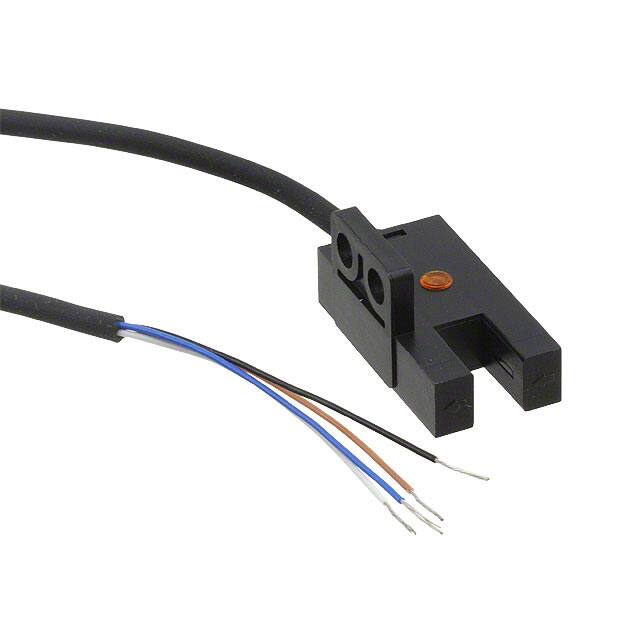

PM-R44P

Specifications

Sensing Method

Through-Beam

Seri

PM-44

Montaj Tipi

Chassis Mount

Kılıf / Paket

Module, Wire Leads, Slot Type

Currentcollector Ic Max

15mA

Repeatability

0.03

Body Height

28.2mm

Tip

Unamplified

Supply Voltagemax Vsup

24V

Yüzey Montaj

NO

Ambalaj

Bulk

Algılama Mesafesi

0.197 (5mm)

Çalışma Sıcaklığı

-25°C~55°C

Voltage Collector Emitter Breakdown Max

30V

Additional Feature

REVERSE POLARITY, SHORT CIRCUIT PROTECTION

Measurement Rangemax

5 mm

Body Breadth

13.2 mm

Supply Voltagemin Vsup

5V

Parça Durumu

Obsolete

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2003

Response Time

20μs

Body Length Or Diameter

13.4mm

Output Configuration

PNP - Dark-ON/Light-ON - Selectable

Mounting Feature

PANEL MOUNT

Current Dc Forward If Max

50mA
