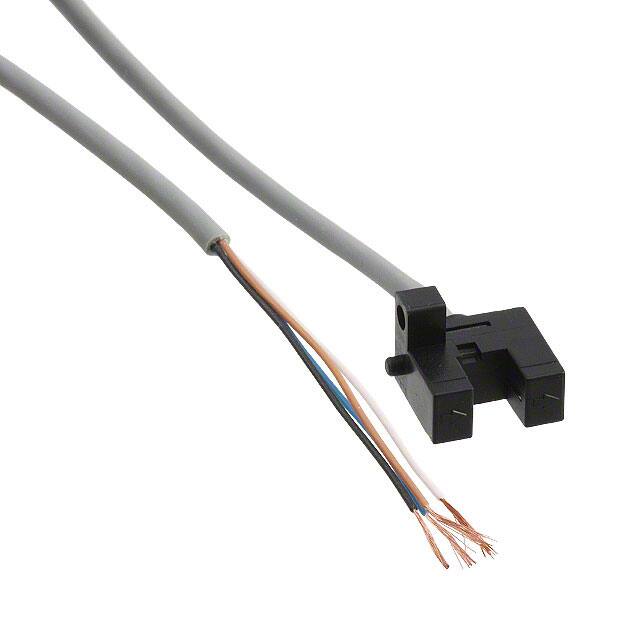

PM-R24-R

Specifications

Tip

Unamplified

Body Height

14mm

Algılama Mesafesi

0.197 (5mm)

Additional Feature

REVERSE POLARITY, SHORT CIRCUIT PROTECTION

Çalışma Sıcaklığı

-25°C~55°C

Voltage Collector Emitter Breakdown Max

30V

Supply Voltagemax Vsup

24V

Ambalaj

Bulk

Yüzey Montaj

NO

Kılıf / Paket

Module, Wire Leads, Slot Type

Seri

PM-24

Sensing Method

Through-Beam

Montaj Tipi

Chassis Mount

Repeatability

0.03

Currentcollector Ic Max

15mA

Mounting Feature

PANEL MOUNT

REACH Uyumluluk Kodu

unknown

Response Time

20μs

Yayın Yılı

2016

Body Length Or Diameter

13.4mm

Output Configuration

NPN - Dark-ON/Light-ON - Selectable

Current Dc Forward If Max

50mA

Supply Voltagemin Vsup

5V

Body Breadth

10.5 mm

Measurement Rangemax

5 mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Obsolete
