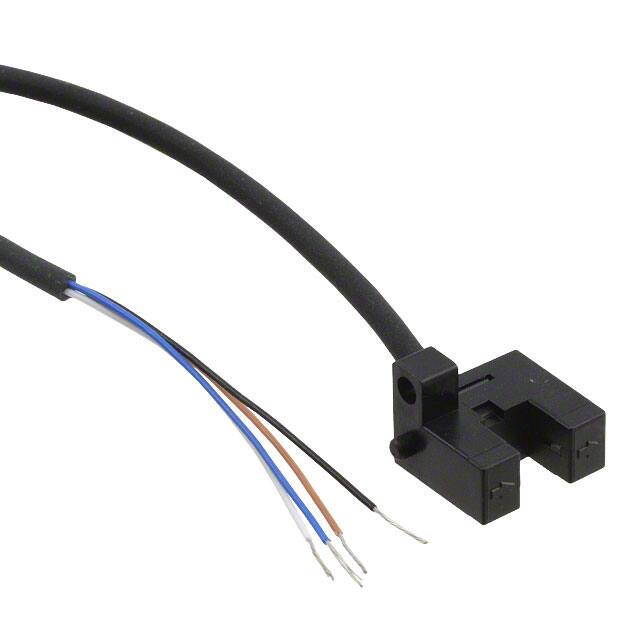

PM-R24

Specifications

Max Supply Voltage Dc

24V

Ambalaj

Bulk

Terminal

Cable

Additional Feature

REVERSE POLARITY, SHORT CIRCUIT PROTECTION

Çalışma Sıcaklığı

-25°C~55°C

Voltage Collector Emitter Breakdown Max

30V

Algılama Mesafesi

0.197 (5mm)

Montaj

Chassis Mount, Screw

Min Supply Voltage Dc

5V

Tip

Unamplified

Body Height

14mm

Repeatability

0.03

Touchscreen

Infrared (IR)

Reach Svhc

Unknown

Montaj Tipi

Chassis Mount

Sensing Method

Through-Beam

Seri

PM-24

Output Current

50mA

Kılıf / Paket

Module, Wire Leads, Slot Type

Current Dc Forward If Max

50mA

Body Length Or Diameter

13.4mm

Output Configuration

NPN - Dark-ON/Light-ON - Selectable

Response Time

20μs

Yayın Yılı

2003

RoHS Durumu

RoHS Compliant

Operating Supply Current

15mA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Obsolete

Housing Material

Polybutylene

Body Breadth

10.5 mm

Measurement Rangemax

5 mm
