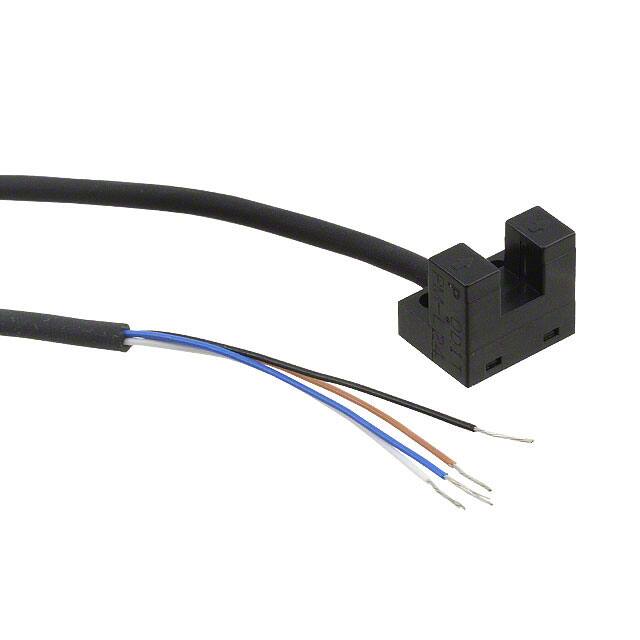

PM-L24

Specifications

Housing Material

PBT

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Obsolete

Depth

10.5mm

Yükseklik

12mm

Body Breadth

6 mm

Current Dc Forward If Max

50mA

Response Time

20μs

Yayın Yılı

2003

Output Configuration

NPN - Dark-ON/Light-ON - Selectable

Uzunluk

13.4mm

Operating Supply Current

15mA

RoHS Durumu

RoHS Compliant

Kurşunsuz Kodu

yes

Repeatability

0.03

Kablo Uzunluğu

1m

Seri

PM-24

Sensing Method

Through-Beam

Reach Svhc

No SVHC

Montaj Tipi

Chassis Mount

Kılıf / Paket

Module, Wire Leads, Slot Type

Output Current

50mA

Ambalaj

Bulk

Max Supply Voltage Dc

24V

Algılama Mesafesi

0.197 (5mm)

Additional Feature

REVERSE POLARITY, SHORT CIRCUIT PROTECTION

Çalışma Sıcaklığı

-25°C~55°C

Voltage Collector Emitter Breakdown Max

30V

Min Supply Voltage Dc

5V

Montaj

Chassis Mount, Screw

Tip

Unamplified
