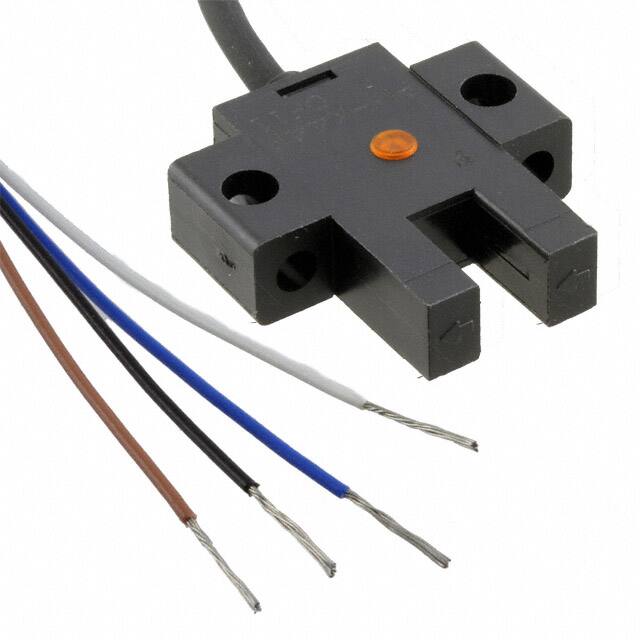

PM-K44P

Specifications

Measurement Rangemax

5 mm

Body Breadth

7 mm

Supply Voltagemin Vsup

5V

Parça Durumu

Obsolete

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mounting Feature

PANEL MOUNT

Body Length Or Diameter

25.4mm

Output Configuration

PNP - Dark-ON/Light-ON - Selectable

Yayın Yılı

2003

Response Time

20μs

Current Dc Forward If Max

50mA

Kılıf / Paket

Module, Wire Leads, Slot Type

Montaj Tipi

Chassis Mount

Sensing Method

Through-Beam

Seri

PM-44

Currentcollector Ic Max

15mA

Repeatability

0.03

Body Height

28.2mm

Tip

Unamplified

Çalışma Sıcaklığı

-25°C~55°C

Voltage Collector Emitter Breakdown Max

30V

Additional Feature

REVERSE POLARITY, SHORT CIRCUIT PROTECTION

Algılama Mesafesi

0.197 (5mm)

Yüzey Montaj

NO

Ambalaj

Bulk

Supply Voltagemax Vsup

24V
