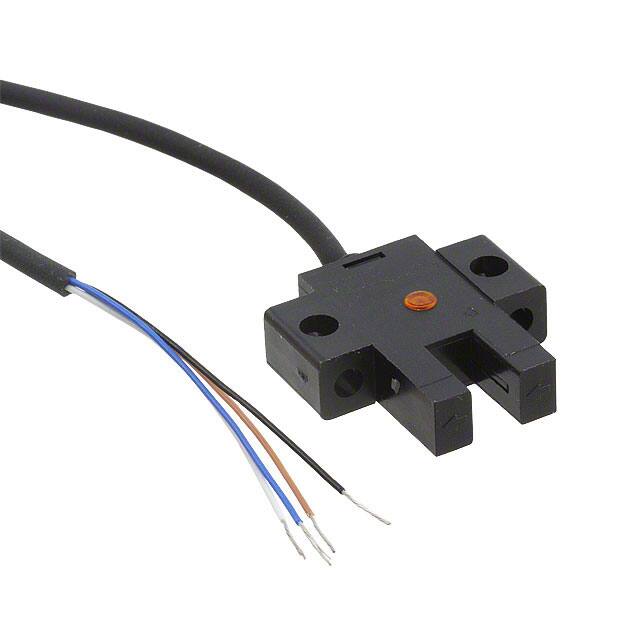

PM-K44

Specifications

Terminal

Cable

Supply Voltagemax Vsup

24V

Ambalaj

Bulk

Algılama Mesafesi

0.197 (5mm)

Additional Feature

REVERSE POLARITY, SHORT CIRCUIT PROTECTION

Çalışma Sıcaklığı

-25°C~55°C

Voltage Collector Emitter Breakdown Max

30V

Montaj

Chassis Mount

Tip

Unamplified

Body Height

28.2mm

Touchscreen

Infrared (IR)

Repeatability

0.03

Currentcollector Ic Max

15mA

Seri

PM-44

Sensing Method

Through-Beam

Montaj Tipi

Chassis Mount

Kılıf / Paket

Module, Wire Leads, Slot Type

Output Current

50mA

Response Time

20μs

Yayın Yılı

2003

Body Length Or Diameter

25.4mm

Output Configuration

NPN - Dark-ON/Light-ON - Selectable

REACH Uyumluluk Kodu

unknown

RoHS Durumu

RoHS Compliant

Output Range

50mA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Obsolete

Supply Voltagemin Vsup

5V

Body Breadth

7 mm

Measurement Rangemax

5 mm
