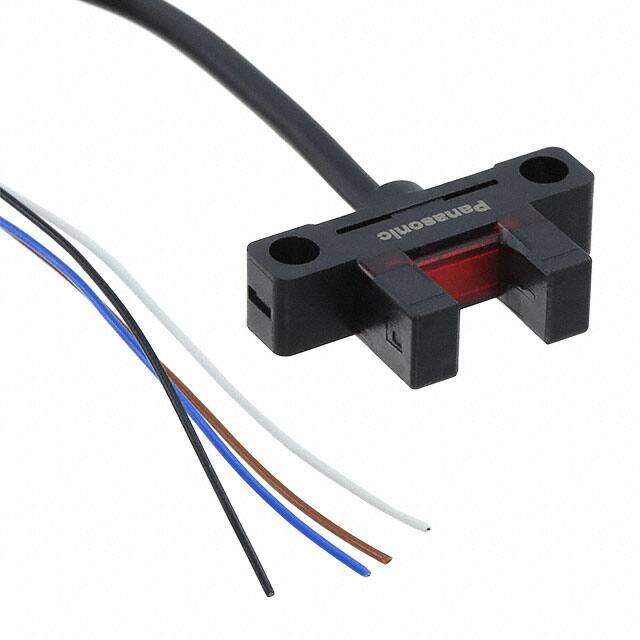

PM-K25-R

Specifications

Repeatability

0.01

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Housing

PLASTIC

Kılıf / Paket

Module, Wire Leads, Slot Type

Montaj Tipi

Chassis Mount

Seri

PM-25

Sensing Method

Through-Beam

Fabrika Tedarik Süresi

8 Weeks

Additional Feature

IP64, SHORT-CIRCUIT PROTECTION, IT ALSO HAVE UNDER LIGHT RECEIVED CONDITION RESPONSE TIME OF 20 MICRO SECOND

Besleme Gerilimi

5V~24V

Çalışma Sıcaklığı

-25°C~55°C TA

Algılama Mesafesi

0.236 (6mm)

RoHS Durumu

RoHS Compliant

REACH Uyumluluk Kodu

unknown

Operating Supply Current

15mA

Montaj

Chassis Mount

Termination Type

CABLE

Output Configuration

NPN - Open Collector

Response Time

20μs

Yayın Yılı

2016
