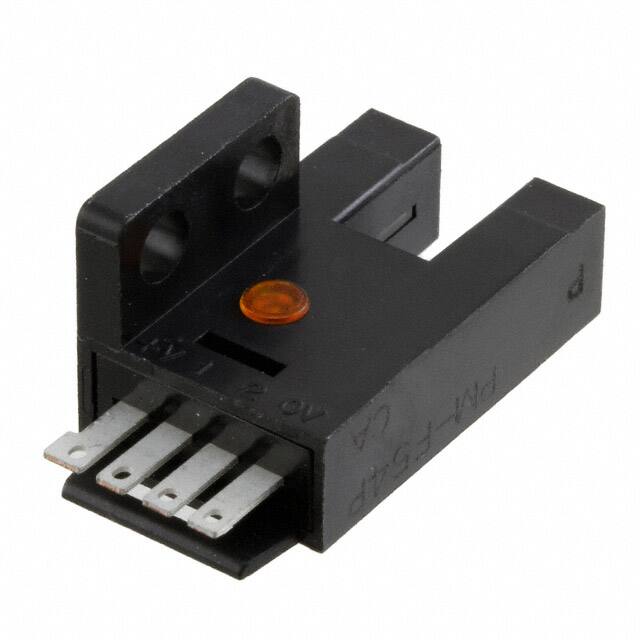

PM-F54P

Specifications

Yüzey Montaj

NO

Ambalaj

Bulk

Supply Voltagemax Vsup

24V

Voltage Collector Emitter Breakdown Max

30V

Çalışma Sıcaklığı

-25°C~55°C

Additional Feature

REVERSE POLARITY, SHORT CIRCUIT PROTECTION

Algılama Mesafesi

0.197 (5mm)

Body Height

22.2mm

Tip

Unamplified

Currentcollector Ic Max

15mA

Repeatability

0.03

Montaj Tipi

Chassis Mount

Seri

PM-54

Sensing Method

Through-Beam

Kılıf / Paket

Module, Wire Leads, Slot Type

Current Dc Forward If Max

50mA

Output Configuration

PNP - Open Collector

Body Length Or Diameter

13.4mm

Yayın Yılı

2016

Response Time

20μs

Mounting Feature

PANEL MOUNT

Parça Durumu

Obsolete

Nem Hassasiyeti (MSL)

1 (Unlimited)

Measurement Rangemax

5 mm

Body Breadth

13.2 mm

Supply Voltagemin Vsup

5V
