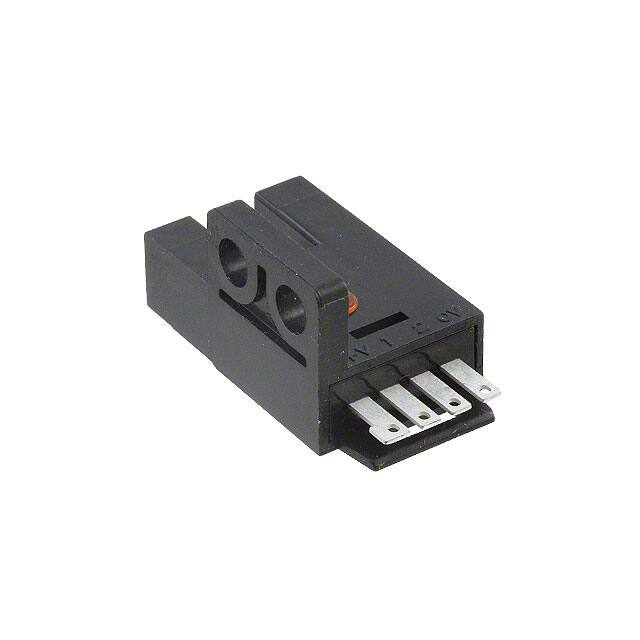

PM-F54

Specifications

Repeatability

0.03

Currentcollector Ic Max

15mA

Kılıf / Paket

Module, Wire Leads, Slot Type

Montaj Tipi

Chassis Mount

Seri

PM-54

Sensing Method

Through-Beam

Additional Feature

REVERSE POLARITY, SHORT CIRCUIT PROTECTION

Çalışma Sıcaklığı

-25°C~55°C

Voltage Collector Emitter Breakdown Max

30V

Algılama Mesafesi

0.197 (5mm)

Ambalaj

Bulk

Yüzey Montaj

NO

Supply Voltagemax Vsup

24V

Tip

Unamplified

Body Height

22.2mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Obsolete

Supply Voltagemin Vsup

5V

Measurement Rangemax

5 mm

Body Breadth

13.2 mm

Current Dc Forward If Max

50mA

Mounting Feature

PANEL MOUNT

Body Length Or Diameter

13.4mm

Output Configuration

NPN - Dark-ON/Light-ON - Selectable

Response Time

20μs

Yayın Yılı

2003
