Specifications
- Fabrika Tedarik Süresi
- 10 Weeks
- Average Rectified Current
- 100mA
- Current Reverse Leakage Vr
- 15μA @ 30V

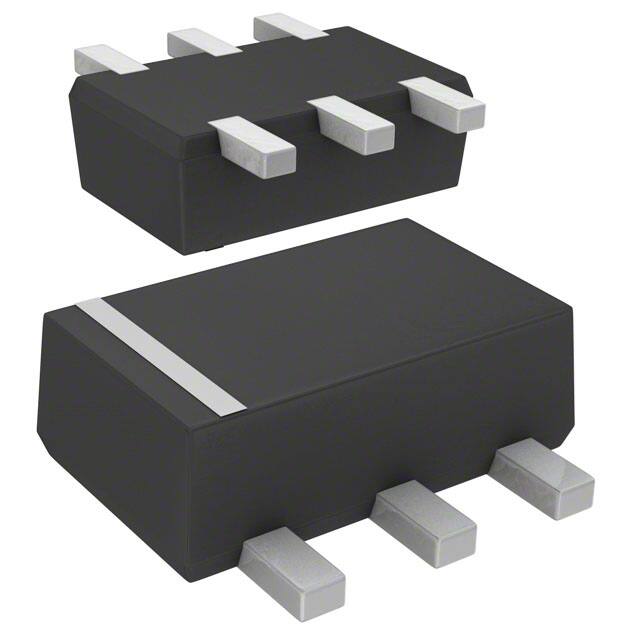

- Kılıf / Paket
- 6-SMD, Flat Leads
- Min. Çalışma Sıcaklığı
- -55°C
- Peak Nonrepetitive Surge Current
- 1A
- Ambalaj
- Tape & Reel (TR)
- Operating Temperature Junction
- 125°C Max
- Montaj
- Surface Mount
- Reverse Recovery Time
- 800 ps
- Max Forward Surge Current Ifsm
- 1A
- Yükseklik
- 700μm
- ECCN Kodu
- EAR99
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Diode Type
- Schottky
- Uzunluk
- 2mm
- RoHS Durumu
- RoHS Compliant
- Pin Sayısı
- 6
- Frequency Band
- VERY HIGH FREQUENCY
- Diode Configuration
- 3 Independent
- Genişlik
- 1.25mm
- Peak Reverse Current
- 15μA
- Montaj Tipi
- Surface Mount
- Max Repetitive Reverse Voltage Vrrm
- 30V
- Diode Element Material
- SILICON
- Forward Voltage
- 550mV
- Temel Parça No
- DB6J316
- Forward Current
- 100mA
- Terminal Sayısı
- 6
- REACH Uyumluluk Kodu
- unknown
- Yayın Yılı
- 2010
- Terminal Pozisyonu
- DUAL
- Voltage Forward Vf Max If
- 550mV @ 100mA
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Parça Durumu
- Discontinued
- Speed
- Small Signal =< 200mA (Io), Any Speed
- Max Reverse Voltage Dc
- 30V
- Number Of Elements
- 3
- Maks. Çalışma Sıcaklığı
- 125°C
