Volume pricing
- 1+ pcs$0.12
- 500+ pcs$0.09
- 1000+ pcs$0.07
- 2000+ pcs$0.07
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Montaj
- Surface Mount
- Average Rectified Current
- 200mA
- Speed
- Small Signal =< 200mA (Io), Any Speed
- Pin Sayısı
- 2
- Operating Temperature Junction
- 125°C Max
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Max Surge Current
- 1A
- Diode Type
- Schottky
- Peak Nonrepetitive Surge Current
- 1A
- Max Reverse Voltage Dc
- 30V
- RoHS Durumu
- RoHS Compliant

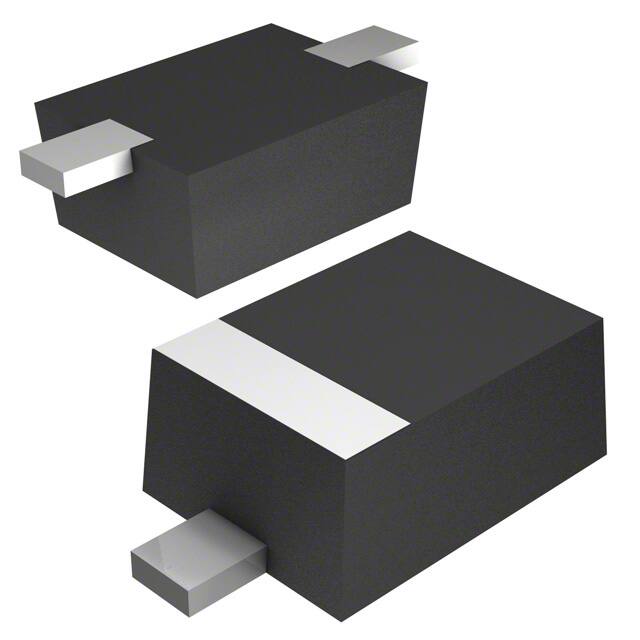

- Kılıf / Paket
- SC-90, SOD-323F
- Terminal Sayısı
- 2
- Terminal Formu
- FLAT
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Number Of Elements
- 1
- Ambalaj
- Tape & Reel (TR)
- Terminal Pozisyonu
- DUAL
- Reach Svhc
- No SVHC
- REACH Uyumluluk Kodu
- unknown
- Max Reverse Leakage Current
- 200μA
- Maks. Çalışma Sıcaklığı
- 125°C
- Recovery Time
- 1.6 ns
- Yayın Yılı
- 2010
- Parça Durumu
- Discontinued
- Current Reverse Leakage Vr
- 200μA @ 30V
- Uzunluk
- 1.7mm
- Peak Reverse Current
- 200μA
- Reverse Recovery Time
- 1.6 ns
- Diode Element Material
- SILICON
- Max Repetitive Reverse Voltage Vrrm
- 30V
- Montaj Tipi
- Surface Mount
- Capacitance Vr F
- 4.5pF @ 10V 1MHz
- Forward Current
- 200mA
- Voltage Forward Vf Max If
- 470mV @ 200mA
- Element Configuration
- Single
- Min. Çalışma Sıcaklığı
- -55°C
- Yükseklik
- 700μm
- Max Forward Surge Current Ifsm
- 300mA
- Temel Parça No
- DB2J310
