Specifications

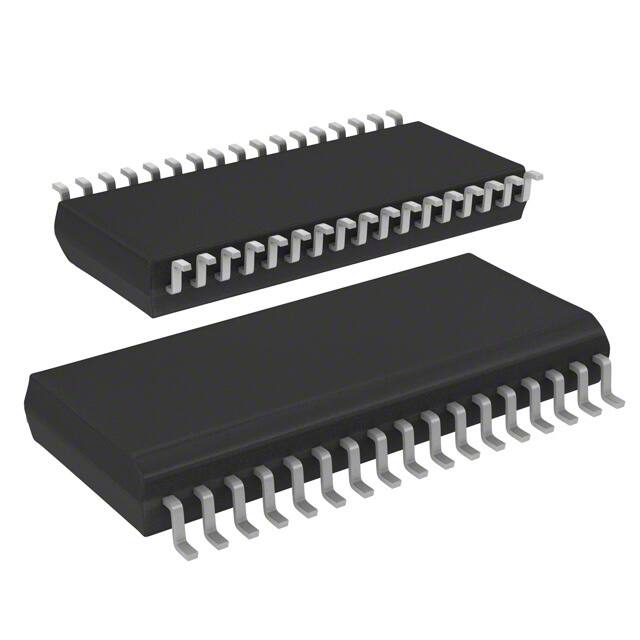

- Temel Parça No
- AN44067A
- Nem Hassasiyeti (MSL)
- 3 (168 Hours)
- Max Supply Voltage
- 34V
- Kılıf / Paket
- 34-TSOP (0.240, 6.10mm Width) Exposed Pad
- Output Voltage
- 37V
- Montaj Tipi
- Surface Mount
- Kurşunsuz
- Lead Free
- Motor Type Stepper
- Bipolar
- Power Dissipation
- 466mW
- Montaj
- Surface Mount
- Voltage Load
- 10V~34V
- Motor Type
- Stepper
- Tedarikçi Cihaz Paketi
- 34-HSOP
- Function
- Driver - Fully Integrated, Control and Power Stage
- Maks. Çalışma Sıcaklığı
- 70°C
- Applications
- General Purpose
- RoHS Durumu
- RoHS Compliant
- Parça Durumu
- Active
- Min. Çalışma Sıcaklığı
- -20°C
- Fabrika Tedarik Süresi
- 14 Weeks
- Yükseklik
- 1.2mm
- Besleme Gerilimi
- 10V~34V
- Pin Sayısı
- 34
- Reach Svhc
- Unknown
- Genişlik
- 6.1mm
- Logic Function
- AND
- Yayın Yılı
- 2008
- Nominal Supply Current
- 10mA
- Interface
- Parallel
- Number Of Outputs
- 2
- Ambalaj
- Cut Tape (CT)
- Çalışma Sıcaklığı
- -20°C~120°C TJ
- Max Collector Current
- 2.5A
- Collector Emitter Voltage Vceo
- 34V
- Max Output Current
- 2.5A
- Step Resolution
- 1, 1/2, 1/8, 1/16, 1/32
- Uzunluk
- 14mm
- Output Configuration
- Half Bridge (4)
- Min Supply Voltage
- 10V
