Specifications
- Pin Sayısı
- 28
- Reach Svhc
- Unknown
- Yükseklik
- 2.6mm
- Besleme Gerilimi
- 4.5V~5.5V
- Logic Function
- AND
- Yayın Yılı
- 2011
- Genişlik
- 8.3mm
- Nominal Supply Current
- 5.7mA
- Interface
- Parallel, PWM
- Number Of Outputs
- 2
- Çalışma Sıcaklığı
- -20°C~120°C TJ
- Ambalaj
- Tape & Reel (TR)
- Collector Emitter Voltage Vceo
- 30V
- Max Output Current
- 1.5A
- Max Collector Current
- 1.5A
- Switchingfrequency
- 58kHz
- Min Supply Voltage
- 4.5V
- Uzunluk
- 18.4mm
- Output Configuration
- Half Bridge (4)
- Step Resolution
- 1, 1/2, 1/8, 1/16
- Kurşunsuz
- Lead Free
- Kılıf / Paket
- 28-BSOP (0.327, 8.30mm Width) + 2 Heat Tabs
- Output Voltage
- 30V
- Montaj Tipi
- Surface Mount
- Nem Hassasiyeti (MSL)
- 3 (168 Hours)
- Max Supply Voltage
- 5.5V

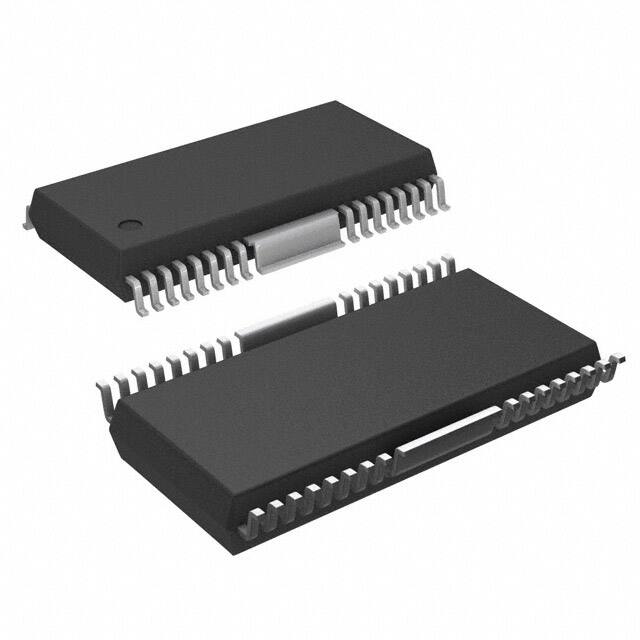

- Temel Parça No
- AN44065A
- Montaj
- Surface Mount
- Motor Type Stepper
- Bipolar
- Power Dissipation
- 717mW
- Tedarikçi Cihaz Paketi
- 28-HSOP
- Motor Type
- Stepper
- Voltage Load
- 18V~28V
- Applications
- General Purpose
- Function
- Driver - Fully Integrated, Control and Power Stage
- Maks. Çalışma Sıcaklığı
- 70°C
- RoHS Durumu
- RoHS Compliant
- Parça Durumu
- Obsolete
- Min. Çalışma Sıcaklığı
- -20°C
