Volume pricing
- 1+ pcs$42.71
- 10+ pcs$40.29
- 100+ pcs$38.01
- 500+ pcs$35.86
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- End Contact Plating
- GOLD
- Max Current Rating
- 8A
- Kurşunsuz Kodu
- yes
- Max Voltage Rating Dc
- 250V
- Parça Durumu
- Active
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Switching Voltage
- 380VAC 250VDC -Max
- Contact Currentdcmax
- 8A
- Coilinput Supply Type
- DC
- Contact Ac Max Rating R Load
- 8A@380VAC
- Seal Rating
- Sealed - Fully
- Contact Materials
- Silver Tin Oxide (AgSnO)
- Kontak Formu
- DPST-NO/NC (1 Form A, 1 Form B)
- Contact Dc Max Rating R Load
- 8A@250VDC
- Body Length Or Diameter
- 31mm
- Pin Sayısı
- 6
- Yayın Yılı
- 2003
- Pcb Hole Count
- 8

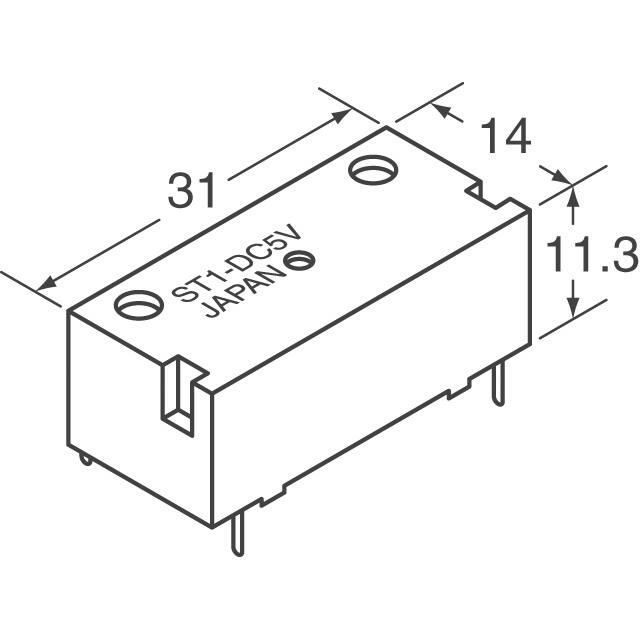

- Physical Dimension
- 31mm x 14mm x 11.3mm
- Release Time
- 10ms
- Body Height
- 11.3mm
- Ambalaj
- Box
- Relay Form
- 1 FORM A,B
- Relay Type
- General Purpose
- Contact Currentacmax
- 8A
- Insulation Resistance
- 1000000000Ohm
- RoHS Durumu
- RoHS Compliant
- Montaj
- Through Hole
- Contact Dc Max Power Rating R Load
- 150W@250VDC
- Contactoutput Supply Type
- AC/DC
- Must Release Voltage
- 0.3VDC
- Coil Type
- Non Latching
- Operate Time
- 15ms
- Fabrika Tedarik Süresi
- 12 Weeks
- Contact Resistance
- 30mOhm
- Terminal Sayısı
- 8
- Coilresistance
- 38Ohm
- Input Switching Control Type
- Random
- Contact Ac Max Power Rating R Load
- 3040VA@380VAC
- Max Voltage Rating Ac
- 380V
