Volume pricing
- 1+ pcs$20.11
- 10+ pcs$18.97
- 100+ pcs$17.89
- 500+ pcs$16.88
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

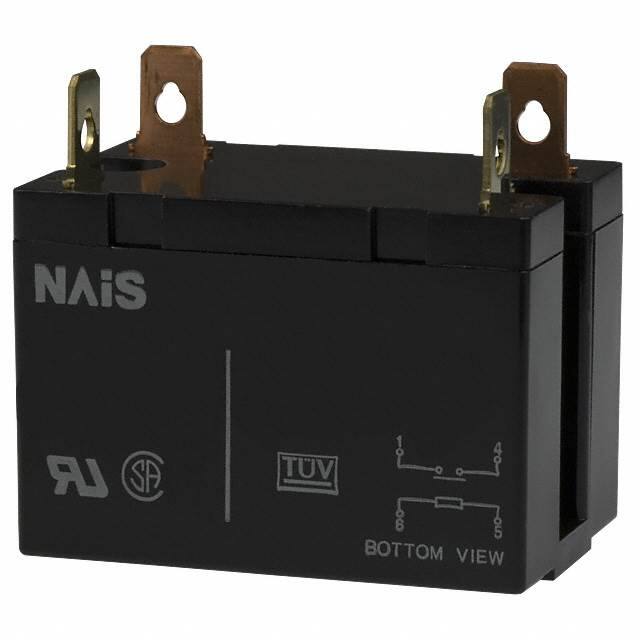

Specifications
- RoHS Durumu
- RoHS Compliant
- Power Consumption
- 1.92W
- Coilinput Supply Type
- DC
- Reference Standard
- CSA; TUV; UL; VDE
- Must Release Voltage
- 11VDC
- Yayın Yılı
- 2010
- Contact Dc Max Rating R Load
- 30A@30VDC
- Must Operate Voltage
- 77VDC
- Max Voltage Rating Ac
- 277V
- Terminal Stili
- Plug In, Quick Connect - 0.250 (6.3mm)
- Pin Sayısı
- 4
- Contact Ac Max Rating R Load
- 30A@277VAC
- Kontak Formu
- SPST-NO (1 Form A)
- Max Voltage Rating Dc
- 30V
- Throw Configuration
- SPST
- Body Length Or Diameter
- 50mm
- Release Time
- 10ms
- Operate Time
- 30ms
- Body Breadth
- 33 mm
- Physical Dimension
- 50mm x 33mm x 35.8mm
- Montaj
- Chassis Mount, Plug-In
- ECCN Kodu
- EAR99
- Packing Method
- BOX
- Switching Voltage
- 277VAC 30VDC -Max
- Contact Materials
- Silver Tin Oxide (AgSnO)
- Coil Type
- Non Latching
- Terminal
- Plug
- Relay Type
- General Purpose
- Çalışma Sıcaklığı
- -50°C~55°C
- Coil Current
- 17.5mA
- Seri
- HE
- Coil Voltage Dc
- 110V
- Coil Voltage
- 110VDC
- Coilresistance
- 6.3kOhm
- Relay Action
- MOMENTARY
- Contactoutput Supply Type
- AC/DC
- Kurşunsuz Kodu
- yes
- Parça Durumu
- Active
- Kurşunsuz
- Lead Free
- Body Height
- 35.8mm
