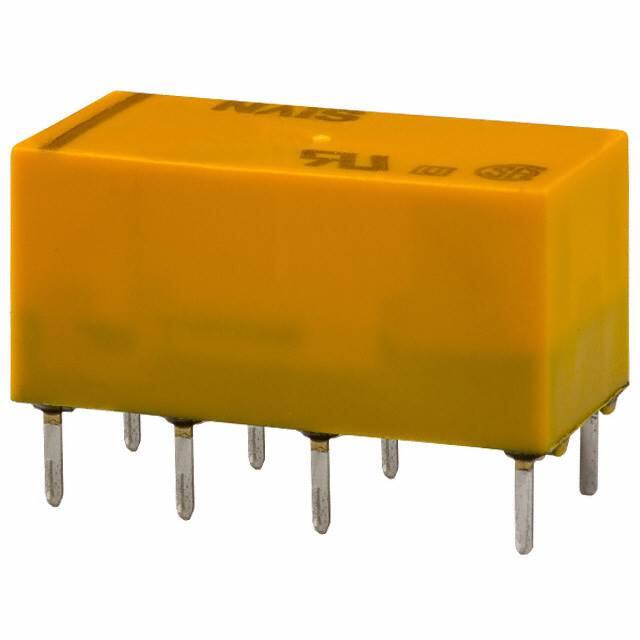

DS2Y-S-DC24V-R

Specifications

Coilinput Supply Type

DC

Sealing

SEALED TYPE

Contact Materials

Silver (Ag), Gold (Au)

Özellikler

Reverse Polarity

Max Voltage Rating Ac

250V

Body Height

9.3mm

REACH Uyumluluk Kodu

unknown

Contact Ac Max Rating R Load

2A@250VAC

Coil Current

8.3mA

Parça Durumu

Obsolete

Coil Voltage

24VDC

Electricallife

100000 Cycle(s)

RoHS Durumu

RoHS Compliant

Seri

DS2Y

Operate Time

4ms

Throw Configuration

DPDT

Switching Voltage

250VAC 220VDC -Max

Max Voltage Rating Dc

220V

Montaj

Through Hole

Body Length Or Diameter

20mm

Physical Dimension

20mm X 9.9mm X 9.3mm

Relay Type

General Purpose

Çalışma Sıcaklığı

-40°C~70°C

Relay Action

MOMENTARY

Must Release Voltage

2.4VDC

Kurşunsuz

Lead Free

Coil Power

200mW

Contact Currentacmax

2A

ECCN Kodu

EAR99

Terminal

PC Pin

Ambalaj

Tube

Nem Hassasiyeti (MSL)

Not Applicable

Reference Standard

CSA; UL

Max Current Rating

2A

Packing Method

BOX

Contactoutput Supply Type

AC/DC

Montaj Tipi

Through Hole

Coilresistance

2.88kOhm

Coil Voltage Dc

24V

Body Breadth

9.9 mm
