Volume pricing
- 1+ pcs$0.16
- 10+ pcs$0.15
- 100+ pcs$0.14
- 500+ pcs$0.13
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Din Conformance
- NO
- RoHS Durumu
- RoHS Compliant
- Contact Resistance
- 80mOhm
- Ffc Fcb Thickness
- 0.30mm
- Max Voltage Rating Ac
- 50V
- Contact Materials
- Copper Alloy
- Depth
- 3.7mm
- Material Flammability Rating
- UL94 V-0

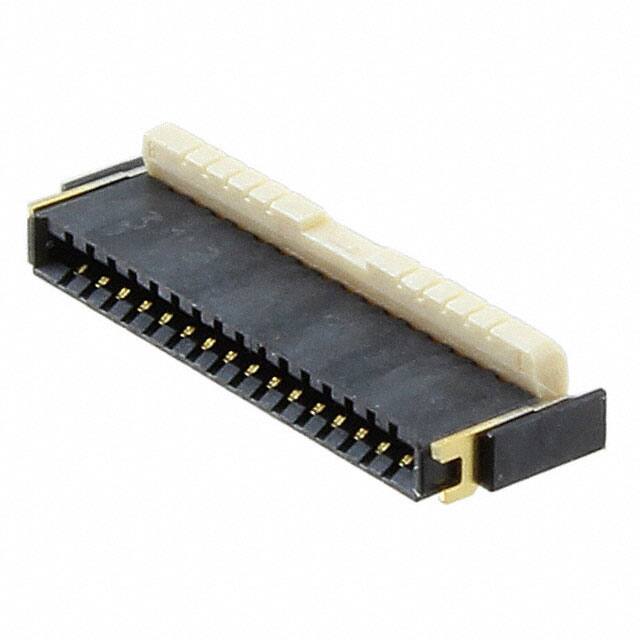

- Connector Type
- FFC/FPC CONNECTOR
- Actuator Material
- Liquid Crystal Polymer (LCP)
- Kurşunsuz
- Lead Free
- Terminal
- Solder
- Locking Feature
- Flip Lock, Backlock
- Çalışma Sıcaklığı
- -55°C~85°C
- Montaj
- Surface Mount
- Current Rating Amps
- 0.5A per Contact
- Filter Feature
- NO
- Gender
- Receptacle
- Flat Flex Type
- FFC, FPC
- Wirecable Type
- Straight
- Uzunluk
- 10mm
- Housing Material
- Liquid Crystal Polymer (LCP)
- Orientation
- Right Angle
- Iec Conformance
- NO
- Flammability Rating
- UL94 V-0
- Option
- GENERAL PURPOSE
- Ambalaj
- Tape & Reel (TR)
- Total Number Of Contacts
- 16
- Seri
- Y5B
- Pitch
- 0.020 0.50mm
- Yayın Yılı
- 2008
- Montaj Tipi
- Surface Mount, Right Angle
- Mating Cycles
- 20
- Mixed Contacts
- NO
- Height Above Board
- 0.039 1.00mm
- Contact Finish
- Gold
- Additional Feature
- LOW PROFILE
- Contact Finish Thickness
- Flash
- Cable End Type
- Tapered
- Contact Location
- Dual
