Volume pricing
- 1+ pcs$0.27
- 10+ pcs$0.26
- 100+ pcs$0.24
- 500+ pcs$0.23
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Housing Material
- Liquid Crystal Polymer (LCP)
- Max Voltage Rating Dc
- 5.05kV
- Orientation
- Right Angle
- Nominal Gerilim
- 50V
- ECCN Kodu
- EAR99
- Pitch
- 0.020 0.50mm
- Seri
- Y5B
- Yayın Yılı
- 2000
- Option
- GENERAL PURPOSE
- Ambalaj
- Tape & Reel (TR)
- Total Number Of Contacts
- 12
- Iec Conformance
- NO
- Flammability Rating
- UL94 V-0
- Material Flammability Rating
- UL94 V-0
- Contact Materials
- Copper Alloy

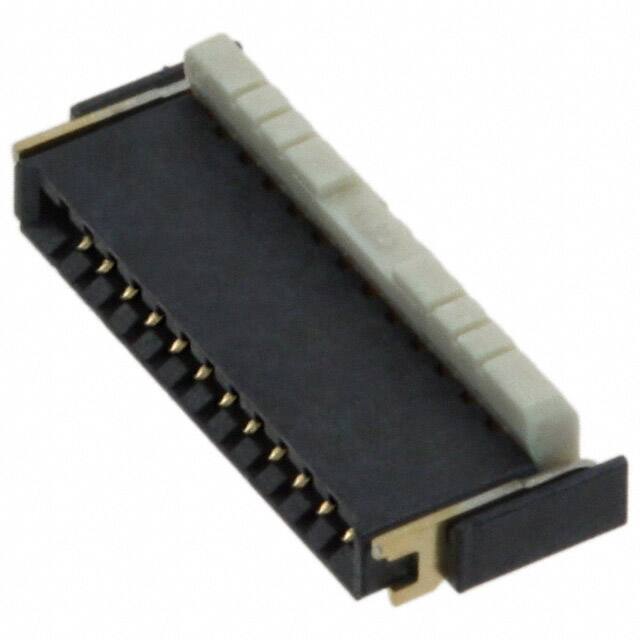

- Connector Type
- FFC/FPC CONNECTOR
- Din Conformance
- NO
- RoHS Durumu
- RoHS Compliant
- Ffc Fcb Thickness
- 0.30mm
- HTS Kodu
- 8536.69.40.51
- Contact Resistance
- 80mOhm
- Flat Flex Type
- FFC, FPC
- Filter Feature
- NO
- Gender
- Receptacle
- Locking Feature
- Flip Lock, Backlock
- Çalışma Sıcaklığı
- -55°C~85°C
- Montaj
- Surface Mount
- Actuator Material
- Liquid Crystal Polymer (LCP)
- Kurşunsuz
- Lead Free
- Terminal
- Solder
- Current Rating Amps
- 0.5A per Contact
- Fabrika Tedarik Süresi
- 10 Weeks
- Kurşunsuz Kodu
- yes
- Parça Durumu
- Active
- Mil Conformance
- NO
- Contact Location
- Dual
- Contact Finish Thickness
- Flash
- Cable End Type
- Tapered
- Ul Flammability Code
- 94V-0
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
