Volume pricing
- 1+ pcs$0.88
- 10+ pcs$0.83
- 100+ pcs$0.78
- 500+ pcs$0.74
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

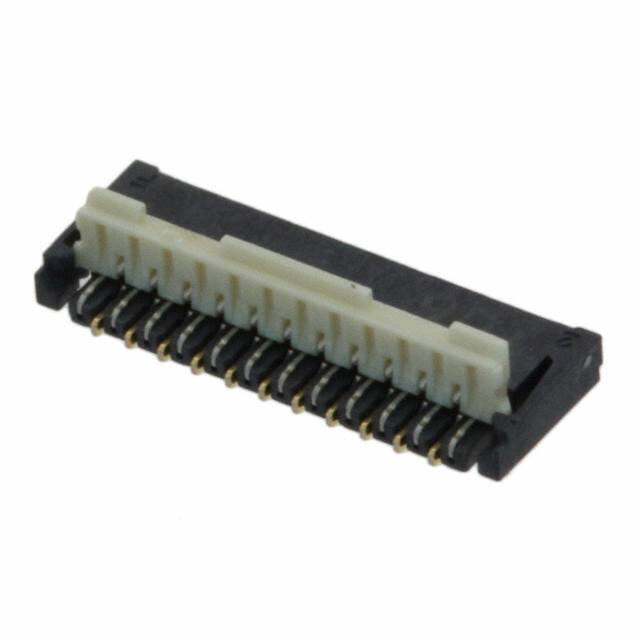

Specifications
- Additional Feature
- LOW PROFILE
- Pcb Contact Pattern
- STAGGERED
- Height Above Board
- 0.035 0.88mm
- Contact Finish
- Gold
- Contact Pattern
- RECTANGULAR
- Insulation Resistance
- 1GOhm
- Mating Cycles
- 20
- Mixed Contacts
- NO
- Reliability
- COMMERCIAL
- Montaj Tipi
- Surface Mount, Right Angle
- Pozisyon Sayısı
- 23
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- JESD-609 Kodu
- e4
- Body Length Or Diameter
- 0.33 inch
- Ul Flammability Code
- 94V-0
- Sıra Sayısı
- 1
- Akım Değeri
- 200mA
- Body Breadth
- 0.035 inch
- Body Depth
- 0.116 inch
- Number Of Pcb Rows
- 2
- Pcb Contact Row Spacing
- .7874 mm
- Parça Durumu
- Active
- Fabrika Tedarik Süresi
- 10 Weeks
- Contact Finish Thickness
- Flash
- Cable End Type
- Tapered
- Mil Conformance
- NO
- Gender
- Female
- Filter Feature
- NO
- Flat Flex Type
- FPC
- Current Rating Amps
- 0.2A per Contact
- Actuator Material
- Liquid Crystal Polymer (LCP)
- Terminal
- Solder
- Locking Feature
- Flip Lock, Backlock
- Çalışma Sıcaklığı
- -55°C~85°C
- Montaj
- Cable, Surface Mount
- Yükseklik
- 2.14mm
- Contact Materials
- Copper Alloy
- Material Flammability Rating
- UL94 V-0
- Contact Resistance
- 100mOhm
- Ffc Fcb Thickness
- 0.20mm
