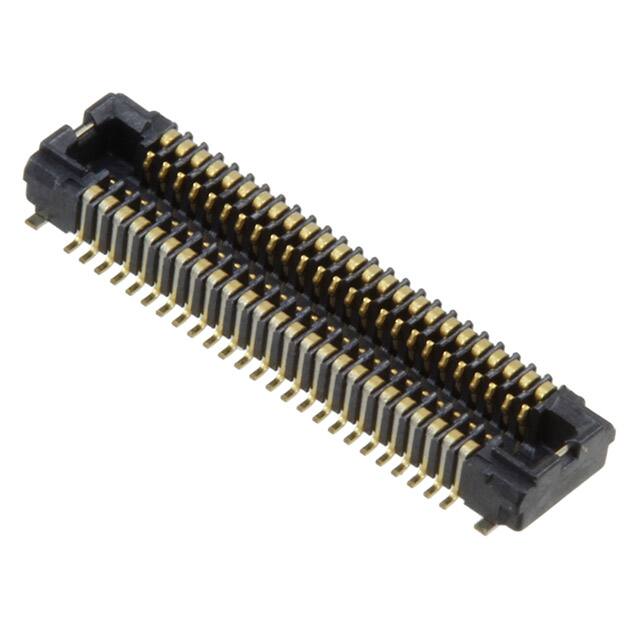

AXT350124

Specifications

Contact Materials

COPPER ALLOY

Orientation

Straight

Pcb Contact Row Spacing

3.4036 mm

Gender

Receptacle

Yayın Yılı

2008

Filter Feature

NO

Parça Durumu

Active

Maks. Çalışma Sıcaklığı

85°C

Mixed Contacts

NO

Total Number Of Contacts

50

Fabrika Tedarik Süresi

10 Weeks

Body Length Or Diameter

0.5 inch

Housing Material

Polymer

Pitch

0.016 0.40mm

Montaj Tipi

Surface Mount

Height Above Board

0.057 1.45mm

Number Of Conductors

ONE

Pcb Contact Pattern

RECTANGULAR

Mil Conformance

NO

Seri

P4S

Insulation Resistance

1000000000Ohm

Reliability

COMMERCIAL

Min. Çalışma Sıcaklığı

-55°C

Contact Pattern

RECTANGULAR

Number Of Pcb Rows

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pozisyon Sayısı

50

Stack Height Mating

1.5mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Option

GENERAL PURPOSE

Nominal Gerilim

60V

Max Voltage Rating Dc

6.06kV

Radyasyon Dayanımı

No

Özellikler

Solder Retention

Contact Style

SQ PIN-SKT

Montaj

Surface Mount

JESD-609 Kodu

e4

Din Conformance

NO

Ul Flammability Code

94V-0

Iec Conformance

NO
