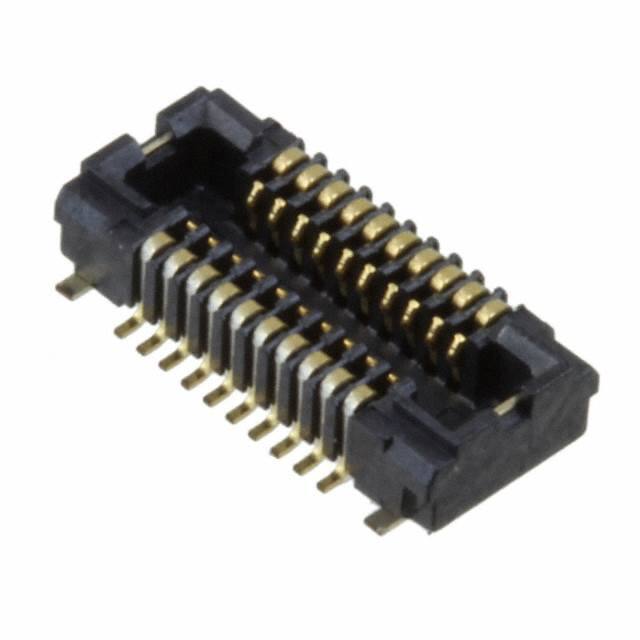

AXT320124

Specifications

Seri

P4S

Insulation Resistance

1000000000Ohm

Reliability

COMMERCIAL

Min. Çalışma Sıcaklığı

-55°C

Contact Pattern

RECTANGULAR

Contact Materials

COPPER ALLOY

Orientation

Straight

Gender

Receptacle

Yayın Yılı

2007

Filter Feature

NO

Parça Durumu

Active

Maks. Çalışma Sıcaklığı

85°C

Mixed Contacts

NO

Total Number Of Contacts

20

Fabrika Tedarik Süresi

10 Weeks

Housing Material

Polymer

Pitch

0.016 0.40mm

Insertion Forcemax

0.981 N

Montaj Tipi

Surface Mount

Height Above Board

0.057 1.45mm

Pcb Contact Pattern

RECTANGULAR

Mil Conformance

NO

Connector Type

Socket, Outer Shroud Contacts

Akım Değeri

300mA

Contact Resistance

90mOhm

Dielectric Withstanding Voltage

150VAC V

Rated Current Signal

0.3A

Durability

50 Cycles

Terminal

SMD/SMT

Contact Finish

Gold

Body Depth

0.057 inch

Body Breadth

0.118 inch

Sıra Sayısı

2

Reference Standard

UL

Withdrawl Forcemin

.05838 N

Ambalaj

Tape & Reel (TR)

Number Of Pcb Rows

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Stack Height Mating

1.5mm

Pozisyon Sayısı

20
