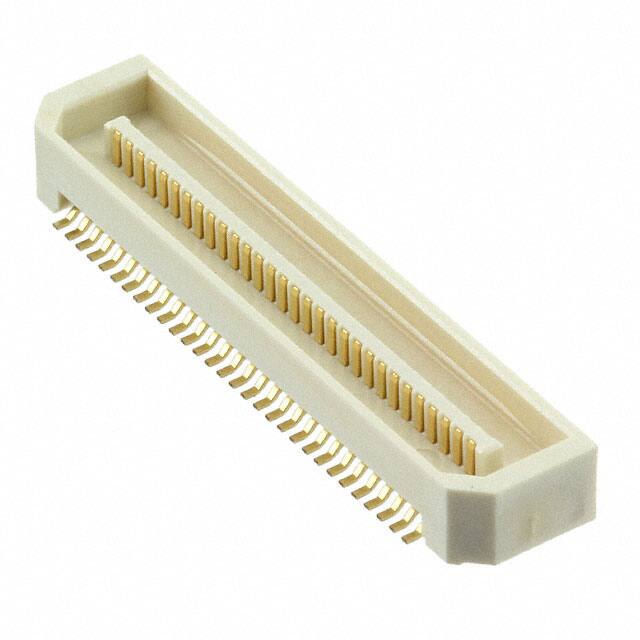

Specifications
- Height Above Board
- 0.146 3.70mm
- Additional Feature
- LOW PROFILE
- Pitch
- 0.031 0.80mm
- Housing Material
- Resin
- Min. Çalışma Sıcaklığı
- -55°C
- Parça Durumu
- Obsolete
- Nominal Gerilim
- 60V
- Connector Type
- Header, Outer Shroud Contacts
- Mil Conformance
- NO
- Maks. Çalışma Sıcaklığı
- 85°C
- Orientation
- Straight
- Option
- GENERAL PURPOSE
- Yayın Yılı
- 2008
- Mixed Contacts
- NO
- Ul Flammability Code
- 94V-0
- RoHS Durumu
- RoHS Compliant
- Contact Materials
- COPPER ALLOY
- Ambalaj
- Tube
- Max Current Rating
- 500mA
- JESD-609 Kodu
- e4
- Contact Finish
- Gold
- Total Number Of Contacts
- 60
- Pozisyon Sayısı
- 60
- Contact Resistance
- 60mOhm
- Terminal
- SMD/SMT
- Montaj
- Surface Mount
- ECCN Kodu
- EAR99
- Fabrika Tedarik Süresi
- 12 Weeks
- Montaj Tipi
- Surface Mount
- Stack Height Mating
- 4mm 4.5mm 7mm
- Filter Feature
- NO
- Contact Gender
- MALE
- Iec Conformance
- NO
- Akım Değeri
- 500mA
- Seri
- P8
- Sıra Sayısı
- 2
- Özellikler
- Board Guide
- Max Voltage Rating Dc
- 6.06kV
- Din Conformance
- NO
- Mating Information
- MULTIPLE MATING PARTS AVAILABLE
