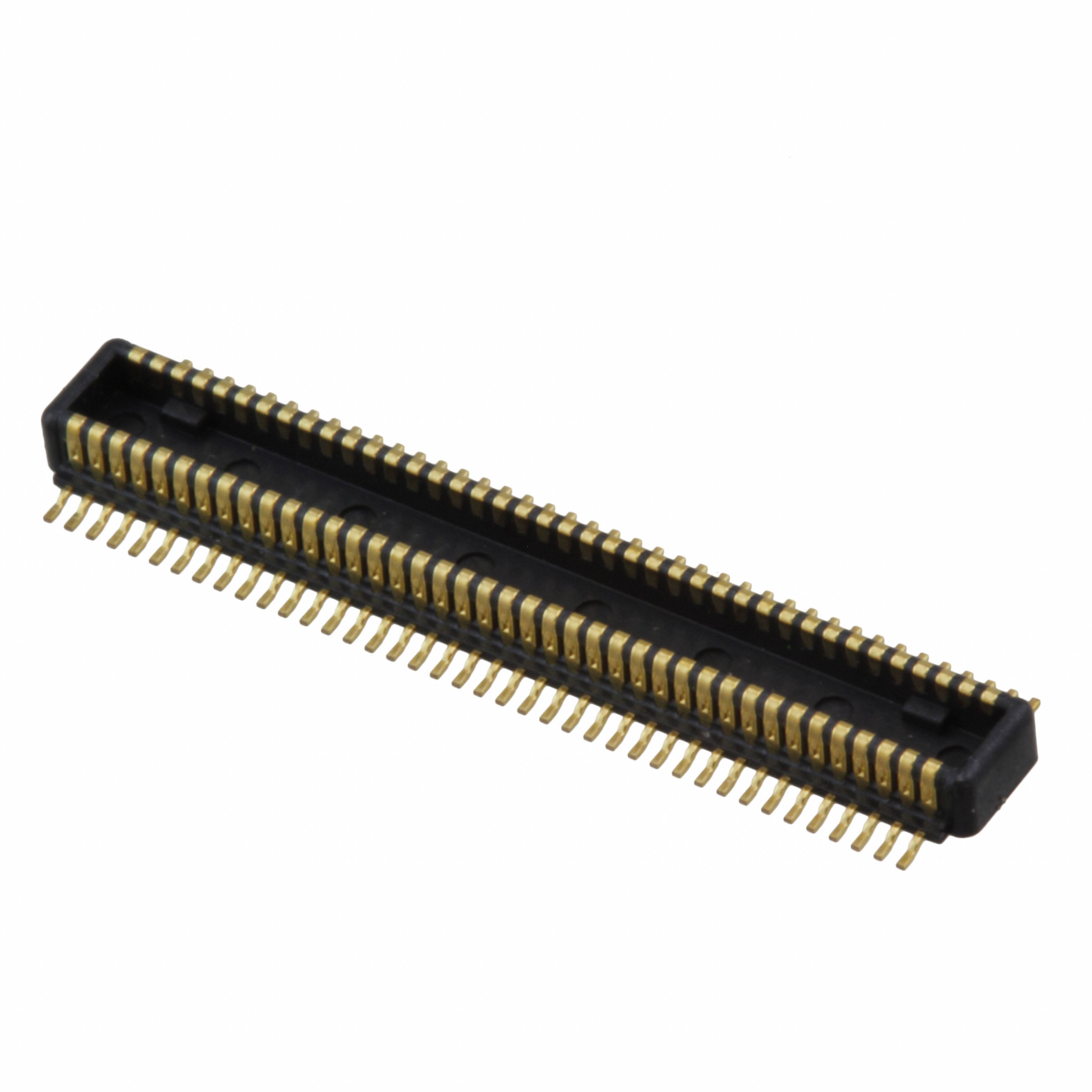

AXK880145WG

Specifications

Contact Materials

COPPER ALLOY

Max Current Rating

5A

JESD-609 Kodu

e4

Yayın Yılı

2008

Ul Flammability Code

94V-0

RoHS Durumu

RoHS Compliant

Maks. Çalışma Sıcaklığı

85°C

Orientation

Straight

Option

GENERAL PURPOSE

Max Voltage Rating Ac

60V

Pcb Contact Pattern

RECTANGULAR

Housing Material

Polymer

Depth

3.12mm

Parça Durumu

Not For New Designs

Gender

Male

Din Conformance

NO

Max Voltage Rating Dc

6.06kV

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Reliability

COMMERCIAL

Montaj Tipi

Surface Mount

Fabrika Tedarik Süresi

6 Weeks

Filter Feature

NO

Stack Height Mating

1.5mm 2mm 2.5mm

Rated Current Signal

0.3A

Akım Değeri

300mA

Reference Standard

UL

Contact Resistance

70mOhm

Terminal

Solder

Number Of Pcb Rows

2

Ambalaj

Tape & Reel (TR)

Mixed Contacts

NO

Contact Pattern

RECTANGULAR

Nominal Gerilim

60V

Connector Type

Header, Outer Shroud Contacts

Insulation Resistance

1000000000Ohm

Mil Conformance

NO

Height Above Board

0.052 1.32mm

Pitch

0.016 0.40mm

Number Of Conductors

ONE

Min. Çalışma Sıcaklığı

-55°C
