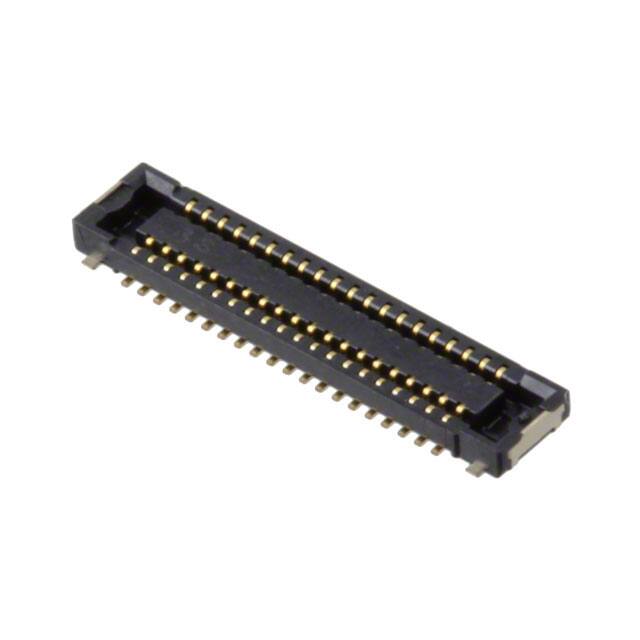

AXE540124

Specifications

Additional Feature

LOW PROFILE

RoHS Durumu

RoHS Compliant

Yayın Yılı

2008

Total Number Of Contacts

40

Contact Resistance

90mOhm

Montaj

Surface Mount

Connector Type

Socket, Center Strip Contacts

Uzunluk

10.5mm

Max Current Rating

5A

Option

GENERAL PURPOSE

Gender

Receptacle

Sıra Sayısı

2

Parça Durumu

Obsolete

Orientation

Straight

Terminal

Solder

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Ul Flammability Code

94V-0

Max Voltage Rating Dc

6.06kV

Contact Finish

Gold

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Voltage Rating Ac

60V

Pitch

0.016 0.40mm

Iec Conformance

NO

Height Above Board

0.030 0.75mm

Özellikler

Solder Retention

Mixed Contacts

NO

Mil Conformance

NO

Ambalaj

Tape & Reel (TR)

Pozisyon Sayısı

40

Contact Materials

Copper

ECCN Kodu

EAR99

Montaj Tipi

Surface Mount

Depth

2.2mm

Kurşunsuz

Lead Free

Min. Çalışma Sıcaklığı

-55°C

Din Conformance

NO

Maks. Çalışma Sıcaklığı

85°C

JESD-609 Kodu

e4

Filter Feature

NO

Housing Material

Polymer
