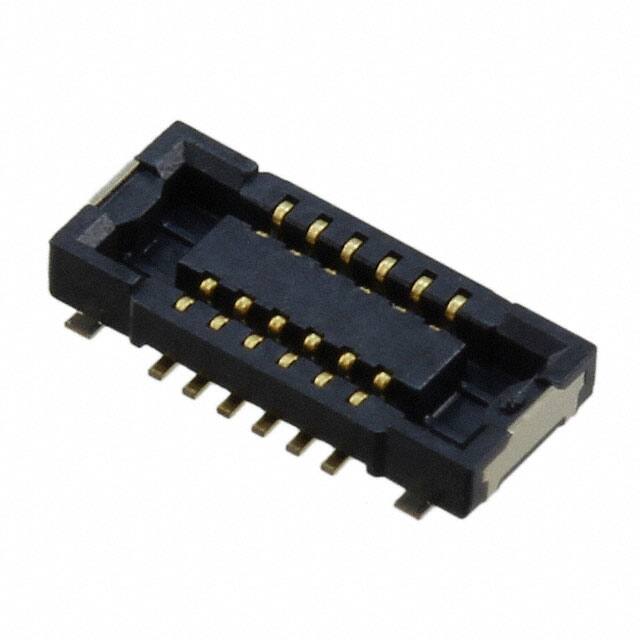

AXE512124

Specifications

Filter Feature

NO

Housing Material

Polymer

Seri

A4S

Stack Height Mating

0.8mm 1mm

Min. Çalışma Sıcaklığı

-55°C

Din Conformance

NO

Contact Gender

FEMALE

Maks. Çalışma Sıcaklığı

85°C

JESD-609 Kodu

e4

Pozisyon Sayısı

12

HTS Kodu

8536.69.40.51

ECCN Kodu

EAR99

Contact Materials

COPPER ALLOY

Depth

2.2mm

Montaj Tipi

Surface Mount

Height Above Board

0.030 0.75mm

Özellikler

Solder Retention

Mixed Contacts

NO

Ambalaj

Tape & Reel (TR)

Mil Conformance

NO

Max Voltage Rating Dc

6.06kV

Ul Flammability Code

94V-0

Contact Finish

Gold

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

0.016 0.40mm

Max Voltage Rating Ac

60V

Iec Conformance

NO

Sıra Sayısı

2

Parça Durumu

Obsolete

Orientation

Straight

Terminal

Solder

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Total Number Of Contacts

12

Yayın Yılı

2008

Contact Resistance

90mOhm

Montaj

Surface Mount

Connector Type

Socket, Center Strip Contacts

Uzunluk

4.9mm

Max Current Rating

5A

Option

GENERAL PURPOSE
