Volume pricing
- 1+ pcs$2.24
- 10+ pcs$2.11
- 100+ pcs$1.99
- 500+ pcs$1.88
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

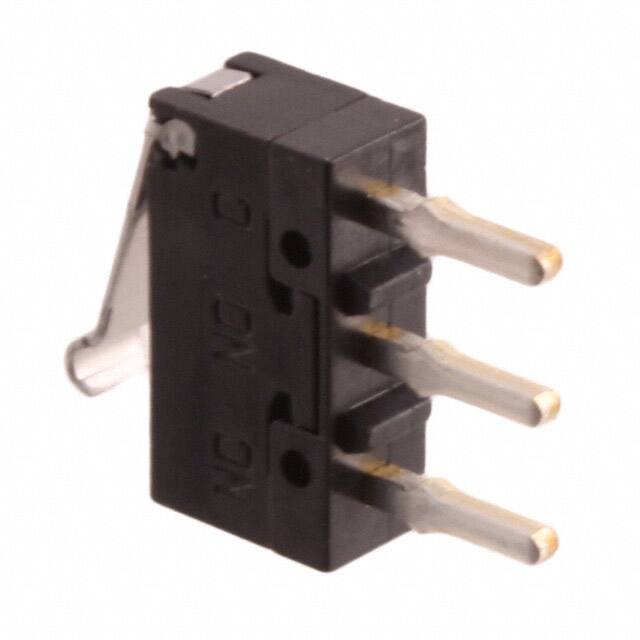

Specifications
- Operating Position
- 0.240 (6.1mm)
- Yayın Yılı
- 2000
- Pretravel
- 0.087 (2.2mm)
- Differential Travel
- 0.027 (0.7mm)
- Contact Resistance
- 200mOhm
- Weight
- 200mg
- Montaj
- Through Hole
- Contact Dc Max Rating R Load
- .1A@30VDC
- RoHS Durumu
- RoHS Compliant
- Kılıf / Paket
- 100
- Actuator Type
- Lever, Simulated Roller
- Max Voltage Rating Dc
- 30V
- Overtravel
- 0.011 (0.3mm)
- Terminal Stili
- PC Pin
- Reach Svhc
- No SVHC
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Parça Durumu
- Active
- Contact Current Rating
- 100mA
- Terminal
- PC Pin
- Orientation
- Straight
- Electricallife
- 200,000 Cycles
- ECCN Kodu
- EAR99
- Contact Materials
- Gold
- Montaj Tipi
- Through Hole
- Insulation Resistance
- 100MOhm
- Mechanical Life
- 300,000 Cycles
- Pozisyon Sayısı
- 2
- HTS Kodu
- 8536.50.70.00
- Voltage Rated Dc
- 30V
- Ambalaj
- Bulk
- Genişlik
- 7.5mm
- Body Height
- 4.5mm
- Housing Material
- Plastic
- Seri
- AV4
- Switch Function
- On-Mom
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Circuit
- SPDT
- Operating Force
- 29gf
- Akım Değeri
- 100mA
- Çalışma Sıcaklığı
- -25°C~80°C
