Volume pricing
- 1+ pcs$4.33
- 10+ pcs$4.09
- 100+ pcs$3.86
- 500+ pcs$3.64
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Ambalaj
- Bulk
- Overtravel
- 0.032 (0.81mm)
- Çalışma Sıcaklığı
- -40°C~85°C

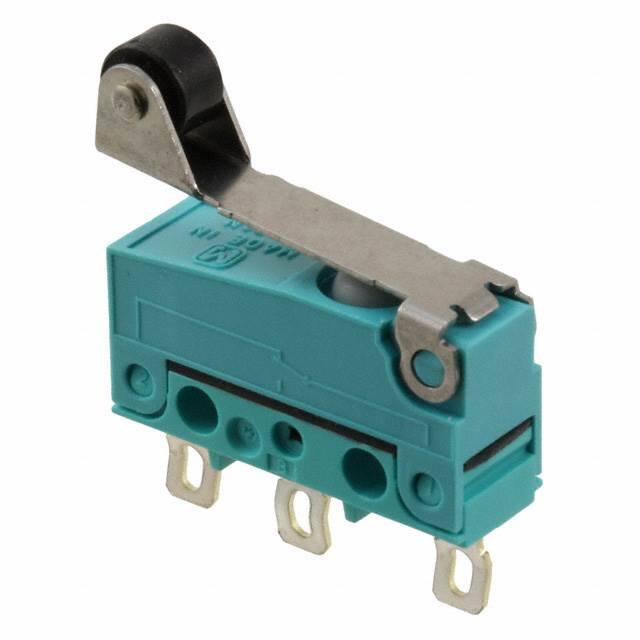

- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Terminal Stili
- Solder Lug
- Terminal Kaplaması
- Gold (Au)
- Release Force
- 3.500gf
- Voltage Rated Ac
- 125V
- Mounting Feature
- PANEL MOUNT
- Switch Function
- On-Mom
- Circuit
- SPDT
- Actuator Travel
- 3.3 mm
- JESD-609 Kodu
- e4
- Electricallife
- 200,000 Cycles
- Yayın Yılı
- 2008
- Current Rating Amps
- 100mA AC/DC
- Fabrika Tedarik Süresi
- 11 Weeks
- Pretravel
- 0.100 (2.5mm)
- Voltage Rated Dc
- 30V
- Body Height
- 11.1mm
- Yüzey Montaj
- NO
- Pretravelmax
- 2.5 mm
- Contact Voltagedcmax
- 30V
- RoHS Durumu
- RoHS Compliant
- Body Breadth
- 6.4 mm
- Contact Currentacmax
- 0.1A
- Differential Travel
- 0.020 (0.5mm)
- Contact Ac Max Rating R Load
- .1A@250VAC
- Seri
- ABS
- Mechanical Life
- 5,000,000 Cycles
- Body Length Or Diameter
- 19.8mm
- Parça Durumu
- Active
- Sealing
- ENVIRONMENTALLY SEALED; IP67
- Ingress Protection
- IP50 - Dust Protected
- ECCN Kodu
- EAR99
- Nem Hassasiyeti (MSL)
- Not Applicable
- Montaj Tipi
- Chassis Mount
- Operating Force
- 40gf
- HTS Kodu
- 8536.50.70.00
- Actuator Type
- Lever, Roller
