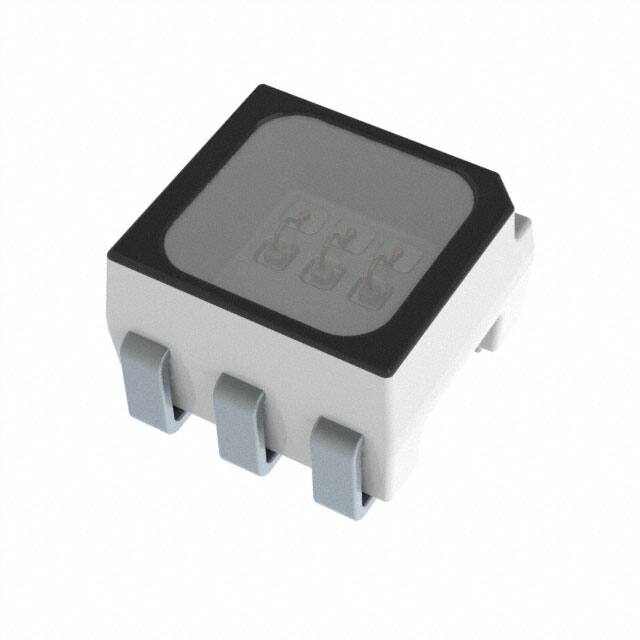

LRTBGVTG-U5V5-1 A5B5-29 S9T9-49-20-R33-B

Specifications

Lens Transparency

Diffused

Yüzey Montaj

YES

Nem Hassasiyeti (MSL)

4 (72 Hours)

Kılıf / Paket

6-SMD, J-Lead

Terminal Kaplaması

Pure Matte Tin (Sn) - with Nickel (Ni) barrier

Montaj Tipi

Surface Mount

Lens Size

2.80mmx2.50mm

Current Test

20mA Red 20mA Green 20mA Blue

Seri

MULTILED® Black Surface

Luminous Intensity

875.0/2200.0/440.0 mcd

Viewing Angle

120°

Millicandela Rating

875mcd Red, 2200mcd Green, 440mcd Blue

Height Max

2.00mm

RoHS Durumu

ROHS3 Compliant

Wavelength Peak

632nm Red 523nm Green 465nm Blue

Wavelengthdominant

625nm Red 528nm Green 470nm Blue

Parça Durumu

Not For New Designs

Voltage Forward Vf Typ

2.05V Red 3.2V Blue 3.2V Green

Configuration

Independent

Terminal Adımı

2.95mm

Forward Currentmax

0.04A

Packing Method

TR, 13 INCH

Optoelectronic Device Type

TRIPLE COLOR LED

Boyut / Ölçü

3.40mm Lx3.30mm W

Operating Temperature Max

110°C

Renk

Red, Green, Blue (RGB)

Ambalaj

Tape & Reel (TR)

Operating Temperature Min

-40°C

Fonksiyon Sayısı

1

Overall Height

1.8mm

Lens Style

Rectangle with Flat Top

Shape

RECTANGULAR

Terminal Sayısı

6
