Volume pricing
- 1+ pcs$15.09
- 10+ pcs$14.23
- 100+ pcs$13.43
- 500+ pcs$12.67
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

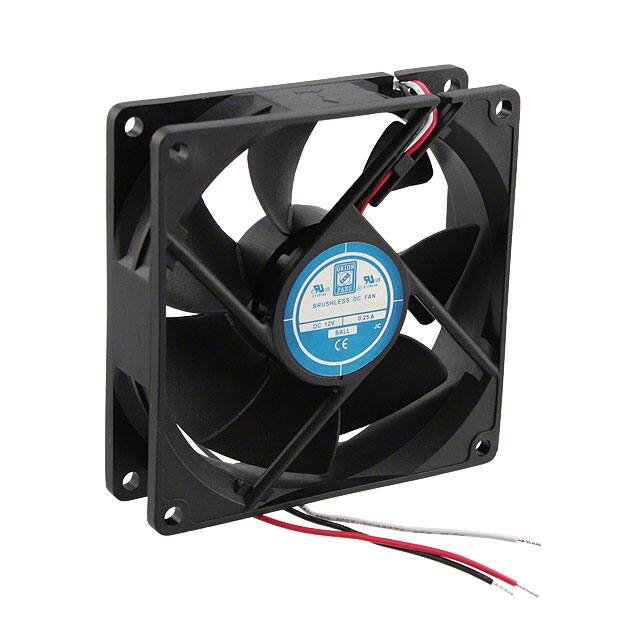

Specifications
- Nominal Gerilim
- 12VDC
- Rpm
- 2900 RPM
- Bearing Type
- Ball
- Akım Değeri
- 250mA
- Weight
- 98.999993g
- Kılıf / Paket
- Axial
- Material Blade
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Noise
- 35.0 dB
- Housing Material
- Plastic
- Power Consumption
- 3W
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Static Pressure
- 0.130 in H2O (32.4 Pa)
- Fabrika Tedarik Süresi
- 19 Weeks
- Current Rating Amps
- 0.250A
- Fan Type
- Tubeaxial
- Depth
- 25mm
- Kurşunsuz
- Lead Free
- Yükseklik
- 92.5mm
- Yayın Yılı
- 2010
- Terminal
- 3 Wire Leads
- Çalışma Sıcaklığı
- -4~176°F -20°C~80°C
- Lifetime Temp
- 60000 Hrs @ 40°C
- Material Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Operating Supply Voltage
- 12V
- RoHS Durumu
- ROHS3 Compliant
- Onay Kuruluşu
- cURus, TUV
- Özellikler
- Speed Sensor (Tach)
- Boyut / Ölçü
- Square - 92.5mm Lx92.5mm H
- Seri
- OD9225
- Parça Durumu
- Active
- Voltage Range
- 7V~17VDC
