Volume pricing
- 1+ pcs$12.24
- 10+ pcs$11.55
- 100+ pcs$10.90
- 500+ pcs$10.28
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

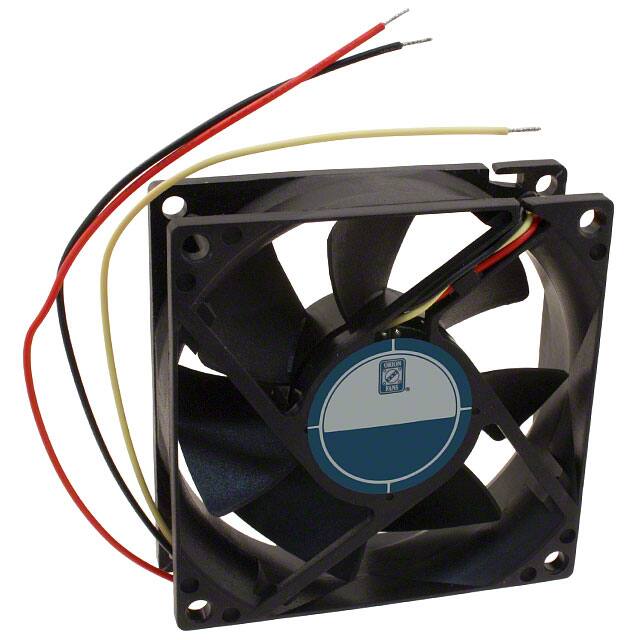

Specifications
- Parça Durumu
- Active
- Fabrika Tedarik Süresi
- 19 Weeks
- Bearing Type
- Ball
- Weight
- 0.191lb 86.64g
- Nominal Gerilim
- 12VDC
- Boyut / Ölçü
- Square - 80mm Lx80mm H
- Onay Kuruluşu
- cURus, TUV
- Güç (Watt)
- 1.8W
- Max Power Dissipation
- 2.9W
- Yükseklik
- 80mm
- Material Frame
- Polybutylene Terephthalate (PBT)
- Çalışma Sıcaklığı
- -4~167°F -20°C~75°C
- Kurşunsuz
- Lead Free
- Fan Type
- Tubeaxial
- Kılıf / Paket
- Axial
- Akım Değeri
- 250mA
- Seri
- OD8025
- Terminal
- 3 Wire Leads
- Power Rating
- 2.9W
- Material Blade
- Polybutylene Terephthalate (PBT)
- Housing Material
- Plastic
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Lifetime Temp
- 65000 Hrs @ 45°C
- Özellikler
- Auto Restart, Locked Rotor Sensor
- Yayın Yılı
- 2010
- Current Rating Amps
- 0.180A
- Static Pressure
- 0.150 in H2O (37.3 Pa)
- RoHS Durumu
- ROHS3 Compliant
- Rpm
- 3100 RPM
- Noise
- 35.0 dB
