Volume pricing
- 1+ pcs$11.77
- 10+ pcs$11.10
- 100+ pcs$10.47
- 500+ pcs$9.88
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

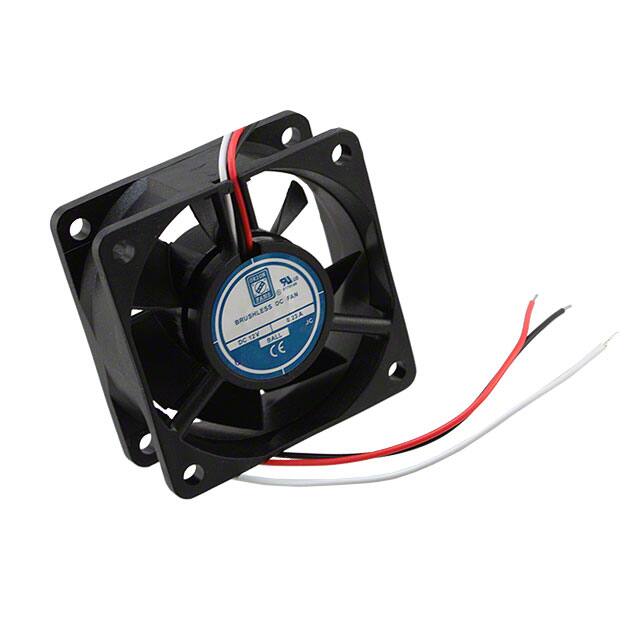

Specifications
- Fan Type
- Tubeaxial
- Boyut / Ölçü
- Square - 60mm Lx60mm H
- Seri
- OD6025
- Nominal Gerilim
- 12VDC
- Max Power Dissipation
- 2.8W
- Material Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Material Blade
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Yayın Yılı
- 2013
- Çalışma Sıcaklığı
- -4~167°F -20°C~75°C
- RoHS Durumu
- ROHS3 Compliant
- Housing Material
- PBT
- Power Consumption
- 2.8W
- Noise
- 35.0 dB
- Onay Kuruluşu
- cURus, TUV
- Static Pressure
- 0.200 in H2O (49.8 Pa)
- Parça Durumu
- Active
- Fabrika Tedarik Süresi
- 19 Weeks
- Lifetime Temp
- 60000 Hrs @ 45°C
- Material
- Plastic
- Akım Değeri
- 230mA
- Bearing Type
- Ball
- Kurşunsuz
- Lead Free
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Kılıf / Paket
- Axial
- Terminal
- 3 Wire Leads
- Operating Supply Voltage
- 12V
- Weight
- 68.999989g
- Rpm
- 4500 RPM
- Özellikler
- Auto Restart, Speed Sensor (Tach)
- Current Rating Amps
- 0.230A
- Power Rating
- 2.8W
- Depth
- 25mm
- Yükseklik
- 60mm
