Volume pricing
- 1+ pcs$17.12
- 10+ pcs$16.15
- 100+ pcs$15.24
- 500+ pcs$14.37
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

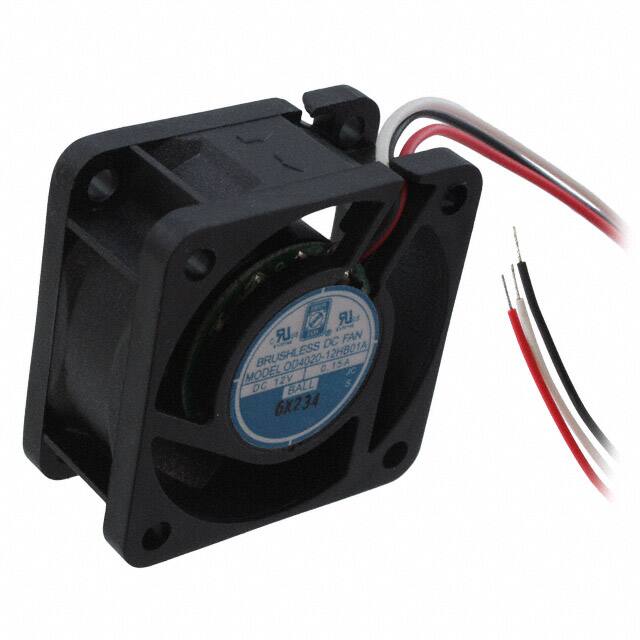

Specifications
- Fan Type
- Tubeaxial
- Nominal Gerilim
- 12VDC
- Seri
- OD4020
- Boyut / Ölçü
- Square - 40mm Lx40mm H
- Material Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Material Blade
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Yayın Yılı
- 2010
- Çalışma Sıcaklığı
- -4~176°F -20°C~80°C
- RoHS Durumu
- ROHS3 Compliant
- Housing Material
- Plastic
- Power Consumption
- 1.8W
- Noise
- 32.0 dB
- Onay Kuruluşu
- cURus, TUV
- Static Pressure
- 0.300 in H2O (74.7 Pa)
- Parça Durumu
- Active
- Fabrika Tedarik Süresi
- 19 Weeks
- Lifetime Temp
- 60000 Hrs @ 45°C
- Bearing Type
- Ball
- Akım Değeri
- 100mA
- Kurşunsuz
- Lead Free
- Kılıf / Paket
- Axial
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Voltage Range
- 7V~14VDC
- Terminal
- 3 Wire Leads
- Operating Supply Voltage
- 12V
- Rpm
- 7800 RPM
- Özellikler
- Speed Sensor (Tach)
- Current Rating Amps
- 0.100A
- Depth
- 20mm
- Yükseklik
- 40mm
