Volume pricing
- 1+ pcs$31.52
- 10+ pcs$29.74
- 100+ pcs$28.05
- 500+ pcs$26.47
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Onay Kuruluşu
- cURus, TUV
- Max Power Dissipation
- 6W
- Yükseklik
- 120mm
- Depth
- 38.5mm
- Material Frame
- Polybutylene Terephthalate (PBT)
- Çalışma Sıcaklığı
- 14~158°F -10°C~70°C
- Kurşunsuz
- Lead Free
- Fan Type
- Tubeaxial
- Kılıf / Paket
- Axial
- Power Consumption
- 6W
- Akım Değeri
- 230mA
- Parça Durumu
- Active
- Fabrika Tedarik Süresi
- 19 Weeks
- Bearing Type
- Ball
- Weight
- 0.72lb 326.59g
- Nominal Gerilim
- 24VDC
- Boyut / Ölçü
- Square - 120mm Lx120mm H
- Operating Supply Voltage
- 24V
- Yayın Yılı
- 2009
- Current Rating Amps
- 0.230A
- Rpm
- 2540 RPM
- RoHS Durumu
- ROHS3 Compliant
- Static Pressure
- 0.230 in H2O (57.3 Pa)
- Noise
- 41.0 dB
- Power Rating
- 190mW
- Terminal
- 2 Wire Leads

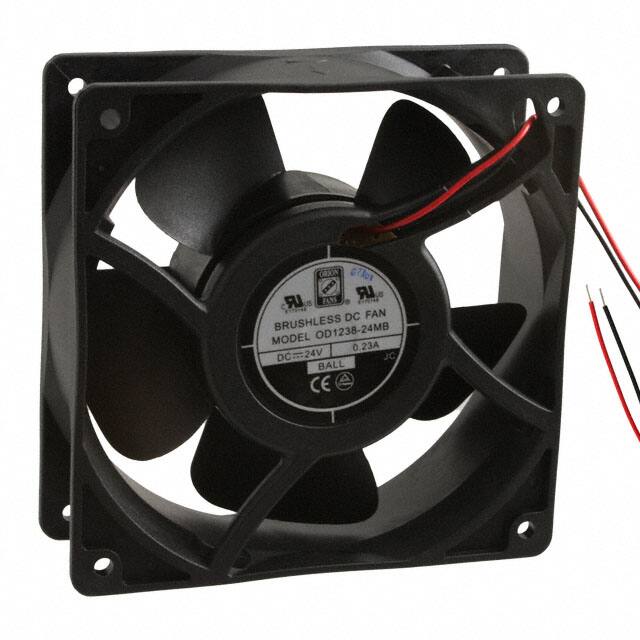

- Seri
- OD1238
- Material Blade
- Polybutylene Terephthalate (PBT)
- Housing Material
- Plastic
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Lifetime Temp
- 65000 Hrs @ 45°C
