Volume pricing
- 1+ pcs$19.98
- 10+ pcs$18.85
- 100+ pcs$17.78
- 500+ pcs$16.78
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

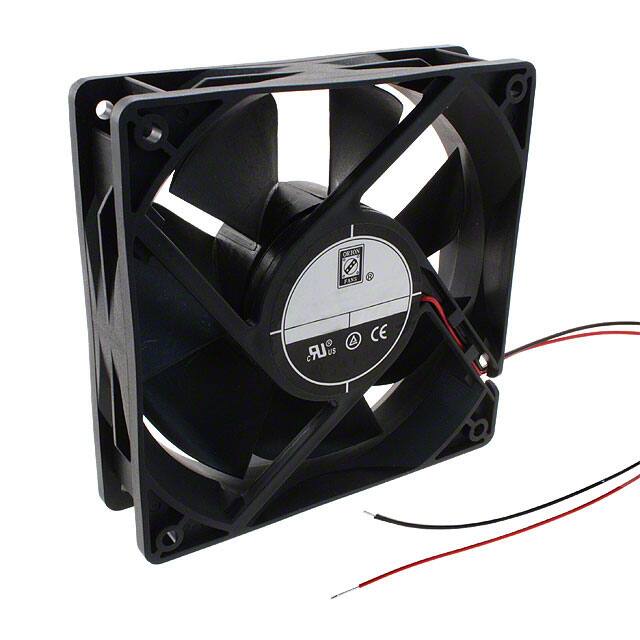

Specifications
- Yayın Yılı
- 2010
- Montaj
- Flanges
- Static Pressure
- 0.420 in H2O (104.6 Pa)
- Fabrika Tedarik Süresi
- 19 Weeks
- Boyut / Ölçü
- Square - 120mm Lx120mm H
- Depth
- 32mm
- Çalışma Sıcaklığı
- -4~176°F -20°C~80°C
- Ambalaj
- Box
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Rpm
- 3750 RPM
- Onay Kuruluşu
- cURus, TUV
- Current Rating Amps
- 0.450A
- Yükseklik
- 120mm
- Terminal
- 2 Wire Leads
- Kurşunsuz
- Lead Free
- Fan Type
- Tubeaxial
- Kılıf / Paket
- Axial
- RoHS Durumu
- ROHS3 Compliant
- Material Blade
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Parça Durumu
- Active
- Voltage Range
- 12V~27.8VDC
- Bearing Type
- Ball
- Power Consumption
- 6W
- Akım Değeri
- 450mA
- Housing Material
- Plastic
- Operating Supply Voltage
- 24V
- Nominal Gerilim
- 24VDC
- Seri
- OD1232
- Lifetime Temp
- 60000 Hrs @ 40°C
- Noise
- 51.0 dB
- Material Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
