Volume pricing
- 1+ pcs$20.71
- 10+ pcs$19.54
- 100+ pcs$18.43
- 500+ pcs$17.39
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Max Power Dissipation
- 5W
- Static Pressure
- 0.240 in H2O (59.8 Pa)
- Yayın Yılı
- 2010
- Boyut / Ölçü
- Square - 120mm Lx120mm H
- Fabrika Tedarik Süresi
- 19 Weeks
- Çalışma Sıcaklığı
- 14~158°F -10°C~70°C
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Ambalaj
- Box
- Thickness
- 25mm
- Current Rating Amps
- 0.100A
- Onay Kuruluşu
- cURus, TUV
- Rpm
- 3000 RPM
- Terminal
- 2 Wire Leads
- Kurşunsuz
- Lead Free
- Yükseklik
- 120mm
- Power Rating
- 90mW
- RoHS Durumu
- ROHS3 Compliant
- Material Blade
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Kılıf / Paket
- Axial
- Fan Type
- Tubeaxial
- Akım Değeri
- 100mA
- Bearing Type
- Ball
- Housing Material
- Plastic
- Parça Durumu
- Active
- Voltage Range
- 18V~53VDC
- Lifetime Temp
- 65000 Hrs @ 45°C
- Noise
- 42.0 dB
- Material Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced

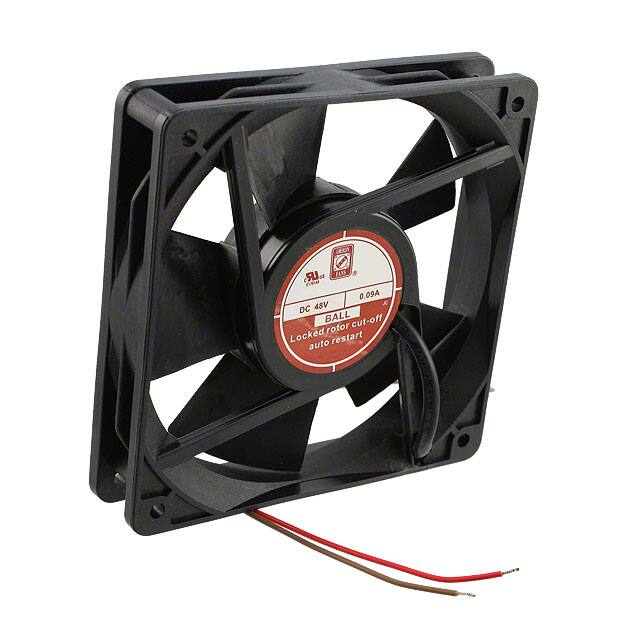

- Seri
- OD1225
- Nominal Gerilim
- 48VDC
