Volume pricing
- 1+ pcs$13.65
- 10+ pcs$12.88
- 100+ pcs$12.15
- 500+ pcs$11.46
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Static Pressure
- 0.140 in H2O (34.9 Pa)
- Max Power Dissipation
- 5.8W
- Montaj
- Flanges
- Yayın Yılı
- 2011
- Depth
- 25mm
- Fabrika Tedarik Süresi
- 19 Weeks
- Boyut / Ölçü
- Square - 120mm Lx120mm H
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Çalışma Sıcaklığı
- 14~158°F -10°C~70°C
- Current Rating Amps
- 0.240A
- Onay Kuruluşu
- cURus, TUV
- Rpm
- 2200 RPM
- Terminal
- 2 Wire Leads
- Kurşunsuz
- Lead Free
- Yükseklik
- 120mm
- Power Rating
- 5.8W
- Material Blade
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- RoHS Durumu
- ROHS3 Compliant
- Kılıf / Paket
- Axial
- Fan Type
- Tubeaxial
- Housing Material
- Plastic
- Power Consumption
- 5.8W
- Akım Değeri
- 240mA
- Bearing Type
- Sealed Sleeve
- Parça Durumu
- Active
- Material Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Noise
- 39.0 dB

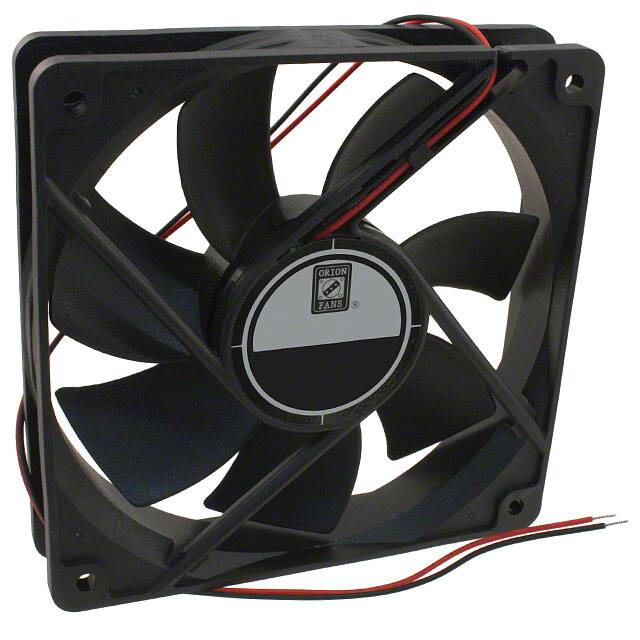

- Seri
- OD1225
- Nominal Gerilim
- 24VDC
- Operating Supply Voltage
- 24V
