Volume pricing
- 1+ pcs$19.38
- 10+ pcs$18.28
- 100+ pcs$17.24
- 500+ pcs$16.27
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

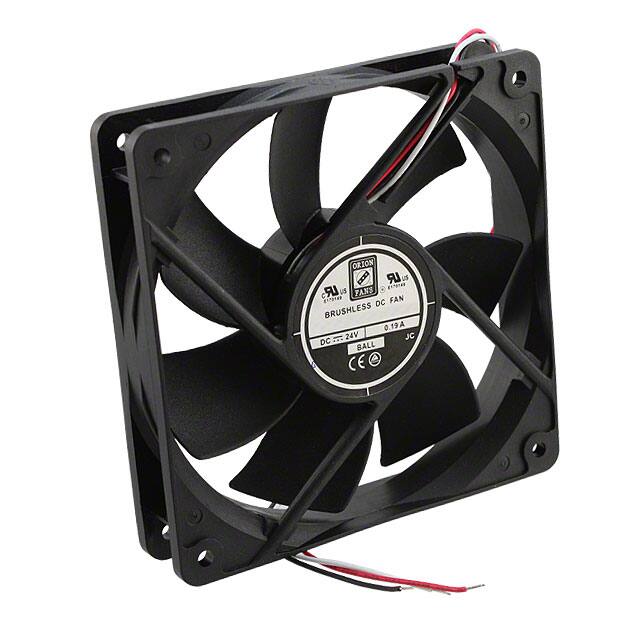

Specifications
- Yayın Yılı
- 2009
- Static Pressure
- 0.140 in H2O (34.9 Pa)
- Max Power Dissipation
- 5W
- Boyut / Ölçü
- Square - 120mm Lx120mm H
- Fabrika Tedarik Süresi
- 19 Weeks
- Depth
- 25mm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Çalışma Sıcaklığı
- 14~158°F -10°C~70°C
- Rpm
- 2200 RPM
- Onay Kuruluşu
- cURus, TUV
- Current Rating Amps
- 0.190A
- Power Rating
- 5W
- Yükseklik
- 120mm
- Özellikler
- Speed Sensor (Tach)
- Kurşunsuz
- Lead Free
- Terminal
- 3 Wire Leads
- Fan Type
- Tubeaxial
- Kılıf / Paket
- Axial
- Material Blade
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- RoHS Durumu
- ROHS3 Compliant
- Parça Durumu
- Active
- Housing Material
- Plastic
- Bearing Type
- Ball
- Power Consumption
- 5W
- Akım Değeri
- 190mA
- Operating Supply Voltage
- 24V
- Seri
- OD1225
- Nominal Gerilim
- 24VDC
- Material Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Noise
- 39.0 dB
- Lifetime Temp
- 65000 Hrs @ 45°C
