Volume pricing
- 1+ pcs$17.56
- 10+ pcs$16.57
- 100+ pcs$15.63
- 500+ pcs$14.75
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

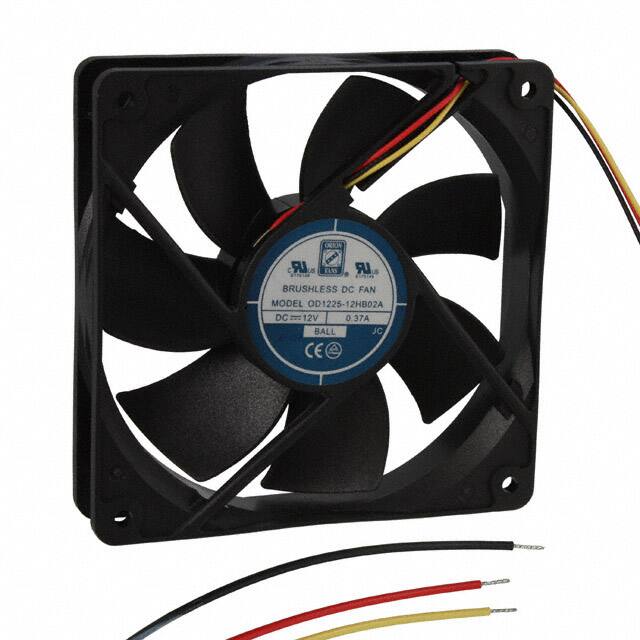

Specifications
- Çalışma Sıcaklığı
- 14~158°F -10°C~70°C
- Life Hours
- 65000 hours
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Onay Kuruluşu
- cURus, TUV
- Maks. Çalışma Sıcaklığı
- 158°C
- Current Rating Amps
- 0.370A
- Uzunluk
- 120mm
- Rpm
- 2200 RPM
- Max Power Dissipation
- 5W
- Weight
- 159.000001g
- Static Pressure
- 0.140 in H2O (34.9 Pa)
- Yayın Yılı
- 2010
- Boyut / Ölçü
- Square - 120mm Lx120mm H
- Fabrika Tedarik Süresi
- 19 Weeks
- Bearing Type
- Ball
- Akım Değeri
- 370mA
- Housing Material
- Plastic
- Min. Çalışma Sıcaklığı
- 14°C
- Parça Durumu
- Active
- Genişlik
- 25.00mm
- Noise
- 39.0 dB
- Lifetime Temp
- 65000 Hrs @ 45°C
- Material Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Nominal Gerilim
- 12VDC
- Seri
- OD1225
- Özellikler
- Locked Rotor Sensor
- Kurşunsuz
- Lead Free
- Terminal
- 3 Wire Leads
- Güç (Watt)
- 5W
- Power Rating
- 5W
- Yükseklik
- 120mm
- Material
- Plastic
- Material Blade
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- RoHS Durumu
- ROHS3 Compliant
- Fan Type
- Tubeaxial
- Kılıf / Paket
- Axial
