Specifications
- Terminal Sayısı
- 19
- Interface
- Parallel
- Montaj
- Through Hole
- Yükseklik
- 14.4mm
- Supply Voltagemax Vsup
- 5.25V
- JESD-609 Kodu
- e2
- Motor Type
- Stepper
- Nominal Supply Current
- 9mA
- Lifecycle Status
- LIFETIME (Last Updated: 2 weeks ago)
- Output Configuration
- Half Bridge (2)
- Yayın Yılı
- 2008
- Collector Emitter Voltage Vceo
- 42V

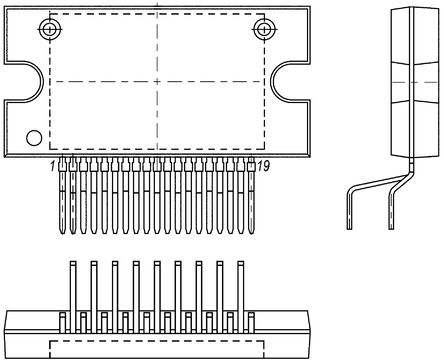

- Kılıf / Paket
- 19-SSIP Formed Leads
- HTS Kodu
- 8542.39.00.01
- Power Supplies
- 524V
- Radyasyon Dayanımı
- No
- Kurşunsuz
- Lead Free
- Besleme Gerilimi
- 4.75V~5.25V
- Switchingfrequency
- 45kHz
- Parça Durumu
- Obsolete
- Power Dissipation
- 10.2W
- Fabrika Tedarik Süresi
- 12 Weeks
- Logic Function
- AND
- Terminal Pozisyonu
- ZIG-ZAG
- Motor Type Stepper
- Unipolar
- Genişlik
- 4.5mm
- Çalışma Sıcaklığı
- 0°C~105°C TC
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Terminal Adımı
- 1mm
- Max Collector Current
- 3A
- Function
- Driver - Fully Integrated, Control and Power Stage
- Applications
- General Purpose
- Ambalaj
- Tube
- Besleme Gerilimi
- 5V
- Montaj Tipi
- Through Hole
- Supply Voltagemin Vsup
- 4.75V
- RoHS Durumu
- RoHS Compliant
- Uzunluk
- 29.2mm
- Pin Sayısı
- 19
- Kurşunsuz Kodu
- yes
