Specifications
- Nominal Supply Current
- 7mA
- JESD-609 Kodu
- e2
- Output Configuration
- Half Bridge (2)
- Yayın Yılı
- 2009
- Output Currentmax
- 20A

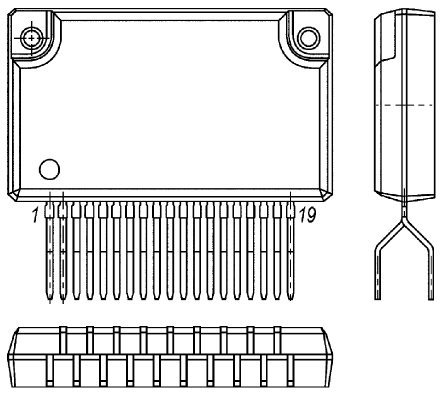

- Kılıf / Paket
- 19-SSIP Formed Leads
- Collector Emitter Voltage Vceo
- 42V
- Besleme Gerilimi
- 4.75V~5.25V
- Switchingfrequency
- 48kHz
- Parça Durumu
- Obsolete
- Kurşunsuz
- Lead Free
- Radyasyon Dayanımı
- No
- Power Supplies
- 524V
- Power Dissipation
- 8.3W
- Temel Parça No
- STK672
- Terminal Sayısı
- 19
- Number Of Outputs
- 1
- Interface
- Parallel
- Yükseklik
- 14.4mm
- Montaj
- Through Hole
- Supply Voltagemax Vsup
- 5.25V
- Montaj Tipi
- Through Hole
- Supply Voltagemin Vsup
- 4.75V
- RoHS Durumu
- RoHS Compliant
- Uzunluk
- 24.2mm
- Pin Sayısı
- 19
- Kurşunsuz Kodu
- yes
- Step Resolution
- 1, 1/2, 1/4, 1/8, 1/16
- Analog Ic Other Type
- STEPPER MOTOR CONTROLLER
- Voltage Load
- 10V~42V
- Terminal Kaplaması
- Tin/Nickel (Sn/Ni)
- Terminal Pozisyonu
- ZIG-ZAG
- Motor Type Stepper
- Unipolar
- Genişlik
- 4.5mm
- Çalışma Sıcaklığı
- 0°C~105°C TC
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Max Collector Current
- 3A
- Function
- Driver - Fully Integrated, Control and Power Stage
- Applications
- General Purpose
- Ambalaj
- Tape & Box (TB)
